Mixed layout crimp contacts

Signal contacts

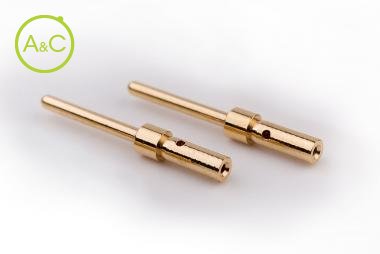

C051800G2

C051800G2

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

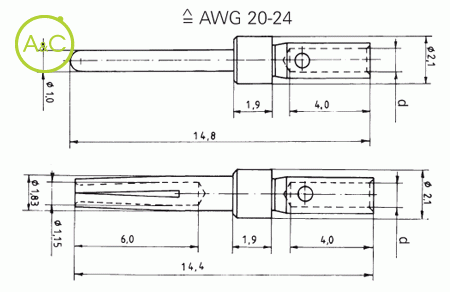

Awg Range

AWG 18
AWG 20
AWG 22
AWG 24-28

Article Number	C051800G2	C061800G2
Contact Plating	Mating area: Au over Ni Termination area: Sn over Ni	Mating area: Au over Ni Termination area: Sn over Ni
Contact Material	CU-alloy	CU-alloy
Remark*	G2: preferred version G1 & G3 on request	G2: preferred version G1 & G3 on request
Current Rating	5	5
Gender	Male	Female
Test Voltage U Eff	Contact-Contact: 1000 V Contact-Ground: 1200	Contact-Contact: 1000 V Contact-Ground: 1200
Quality Class*	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles

Article Number	C052000G2	C062000G2
Contact Plating	Mating area: Au over Ni Termination area: Sn over Ni	Mating area: Au over Ni Termination area: Sn over Ni
Contact Material	CU-alloy	CU-alloy
Remark*	G2: preferred version G1 & G3 on request	G2: preferred version G1 & G3 on request
Current Rating	5	5
Gender	Male	female
Test Voltage U Eff	Contact-Contact: 1000 V Contact-Ground: 1200	Contact-Contact: 1000 V Contact-Ground: 1200
Quality Class*	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles

Article Number	C052200G2	C062200G2
Contact Plating	Mating area: Au over Ni Termination area: Sn over Ni	Mating area: Au over Ni Termination area: Sn over Ni
Contact Material	CU-alloy	CU-alloy
Remark*	G2: preferred version G1 & G3 on request	G2: preferred version G1 & G3 on request
Current Rating	5	5
Gender	Male	Female
Test Voltage U Eff	Contact-Contact: 1000 V Contact-Ground: 1200	Contact-Contact: 1000 V Contact-Ground: 1200
Quality Class*	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles

Article Number	C052400G2	C062400G2
Contact Plating	Mating area: Au over Ni Termination area: Sn over Ni	Mating area: Au over Ni Termination area: Sn over Ni
Contact Material	CU-alloy	CU-alloy
Remark*	G2: preferred version G1 & G3 on request	G2: preferred version G1 & G3 on request
Current Rating	5	5
Gender	Male	Female
Test Voltage U Eff	Contact-Contact: 1000 V Contact-Ground: 1200	Contact-Contact: 1000 V Contact-Ground: 1200
Quality Class*	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles

Les propriétés diffèrent selon les variantes et sous-variantes
