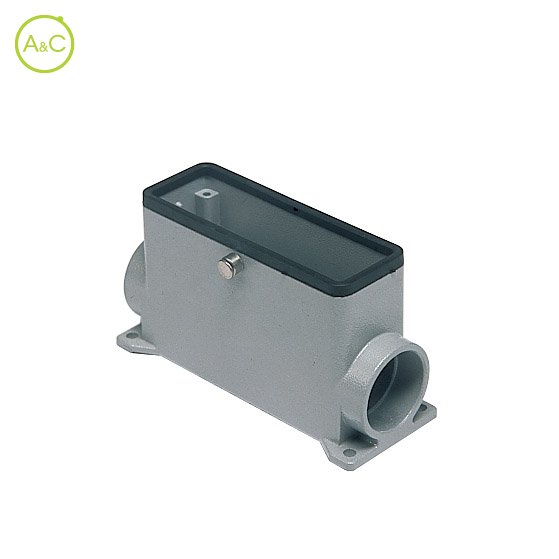

Surface mounting housings, high construction

  • With two entries for central lever, with pegs
  • Aluminium, 2xPG29
Télécharger la fiche produit
  • General
Article Number CAP 06 YC229
Protection Degree IP65
Material Housing Aluminium
Height 74 mm
Length 82
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism Central clamp
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Two-sided
Width 57 mm
Les propriétés diffèrent selon les variantes et sous-variantes
