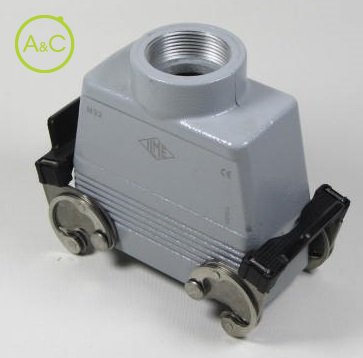

Hoods with 2 levers, high construction

  • Top entry
  • Aluminium, PG entry
Télécharger la fiche produit

Entry

  • 1xPG21
  • 1xPG29
Article Number CAV 24 X*
Protection Degree IP66
Material Housing Aluminium
Height 91 mm
Remark* May be combined with enclosures: CHI 24 CS; CHI 24 CP; CHI 24 C; CHP 24 CS; CHP 24 CP; CHP 24 C; CAP 24 CS; CAP 24 CP; CAP 24 C; MHP 24 CS; MHP 24 CP; MAP 24 CS; MAP 24 CP
Length 120
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 64P + PE; CDD 108 P + PE; CDS 42P + PE; CSH 24P + PE; CNE-CSE 24P + PE; CCE 24P + PE; CSS 24P + PE; CQE 46P + PE; CQEE 64P + PE; CMCE 10+2 (aux)P + PE; CMSH 10+2 (aux)P + PE; CX 4/8 and 6/6P + PE; MIXO 6 modules; CDSH 42 P + PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Top entry
Width 59 mm
Les propriétés diffèrent selon les variantes et sous-variantes
Accessoires
CHC 24 C*
Covers with 4 pegs and gasket
