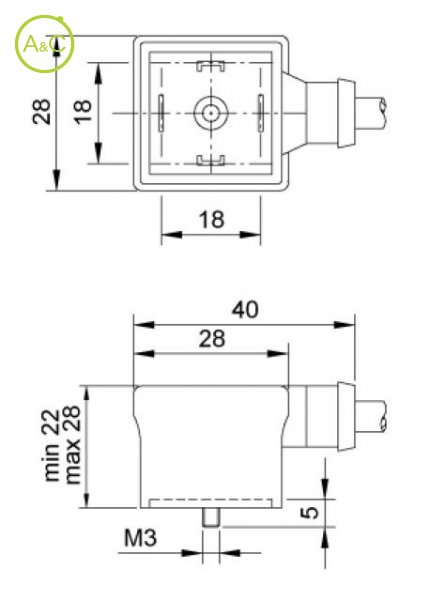

Style A square connector

  • 2 Leds for switching over contacts, switching on 3 and 2

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Housing Material

  • PUR
  • TPR
Article Number CC11 20R3M 514 3000 0 CC11 20R8M 514 3000 0
Protection Degree IP65* IP65*
Upper Temperature +70 °C +70 °C
Lower Temperature -40 °C -40 °C
Contact Type Fork Fork
Circuits 2 Leds for switching over contacts, switching on 3 and 2 3 Leds for switching over contacts, switching on 3 and 2
Housing Oil Resistance Occasional contact Occasional contact
Housing Hardness 73 shore A 73 shore A
Other Characteristics M3 central screw material: zinc plated iron M3 central screw material: zinc plated iron
Voltage Vdc 10 to 50 10 to 50
Max. Currrent 10 A @40°C 10 A @40°C
Housing Colour Black Black
Remark* The IP65 protection degree is valid only if the connector is mounted with the cable exit not upward The IP65 protection degree is valid only if the connector is mounted with the cable exit not upward
Les propriétés diffèrent selon les variantes et sous-variantes
