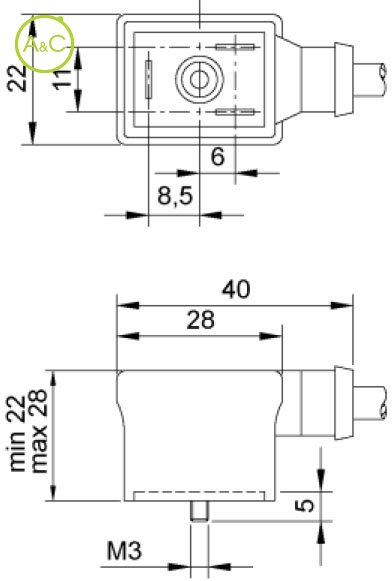

Style B-ind rectangular connector

  • Red Led + rectifier
Télécharger la fiche produit

Housing Material

  • PUR
  • TPR
Article Number CE11 33H3R 414 3000 0** CE11 33H8R 414 3000 0**
Protection Degree IP65* IP65*
Upper Temperature +70 °C +70 °C
Lower Temperature -40 °C -40 °C
Contact Type Fork Fork
Circuits Red Led + rectifier Red Led + rectifier
Housing Oil Resistance Occasional contact Occasional contact
Housing Hardness 73 shore A 73 shore A
Other Characteristics M3 central screw material: zinc plated iron M3 central screw material: zinc plated iron
Voltage Vac 10 to 50 70 to 250
Max. Currrent 1,4 A @40°C 1,4 A @40°C
Clamping Voltage 320..640 V 320..640 V
Housing Colour Black Black
Remark* The IP65 protection degree is valid only if the connector is mounted with the cable exit not upward The IP65 protection degree is valid only if the connector is mounted with the cable exit not upward
Remark** The rectifier connector body dimensions are bigger, similar to CA serie The rectifier connector body dimensions are bigger, similar to CA serie
Les propriétés diffèrent selon les variantes et sous-variantes
