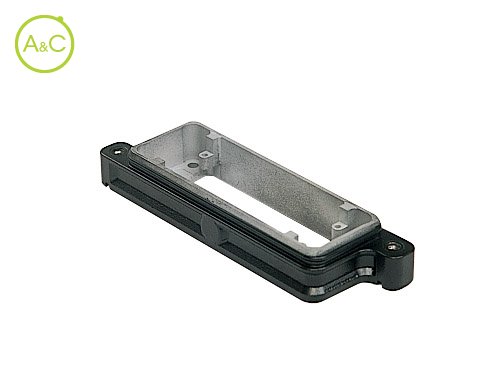

Bulkhead mounting housings, screw locking

  • Aluminium
Télécharger la fiche produit
  • General
Article Number CGI 06
Protection Degree IP68
Material Housing Aluminium
Height 29 mm
Length 133
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism Screw
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Below
Width 58 mm
Les propriétés diffèrent selon les variantes et sous-variantes
Accessoires
CGC 06
Cover for Screw locking
CG 06 FL
Frame for bulkhead mounting housings
CYG 06H06
1 branch-off T-Box coupling
CYG 06H06D
1 branch-off T-Box coupling
CYG 06H10
1 branch-off T-Box coupling to be fitted on DIN rails
CYG 06H1006
2 branch-off T-Box coupling
CYG 06H0606
2 branch-off T-Box coupling
