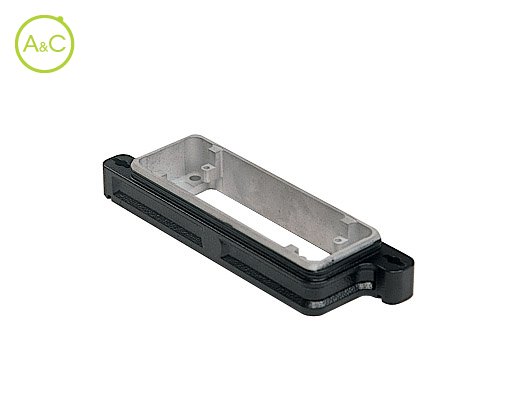

Bulkhead mounting housings, Bayonet locking

  • Aluminium
Télécharger la fiche produit
  • General
Article Number CGI 16 B
Protection Degree IP68
Material Housing Aluminium
Height 29 mm
Length 166
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 40 P + PE; CDD 72 P + PE; CDS 27 P + PE; CSH 16 P + PE; CNE-CSE 16 P + PE; CCE 16 P + PE; CSS 16 P + PE; CQE 32 P + PE; CQEE 40 P + PE; CMCE-CMSH 6+2 (aux) P + PE; CP 6 P + PE; CX 6/36 and 12/2 P + PE; CX 4/0 and 4/2 P + PE; Mixo 4 modules; CDHS 27 P + PE; CX 6+12 P + PE
Locking Mechanism Bayonet
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Below
Width 58 mm
Les propriétés diffèrent selon les variantes et sous-variantes
Accessoires
CGC 16 B
Covers for bayonet locking
CG 16 FL
Frame for bulkhead mounting housings
CYG 16
Enclosures for in-line joints IP65
