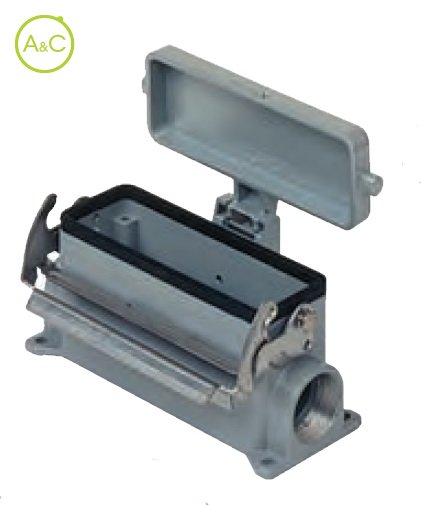

Surface mounting housings

  • With single lever in stainless steel and aluminium cover
  • Aluminium, PG entry
Télécharger la fiche produit

Entry

  • 1xPG16
  • 2xPG16
Article Number CVP 06 LS
Protection Degree IP65
Material Housing Aluminium
Height 53 mm
Length 82
Extra Information Corrosion resistant
UV resistant
With hinged lid
With interlocking device
Coating Housing With powder coating
Required Inserts CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism Single locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Side entry
Width 52 mm
Les propriétés diffèrent selon les variantes et sous-variantes
