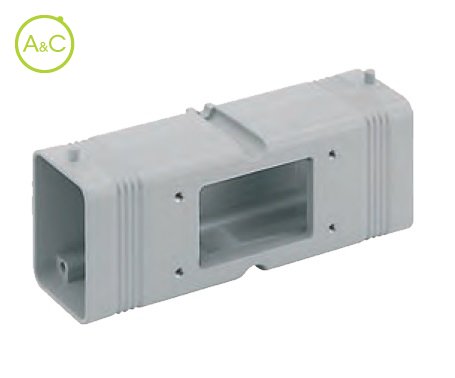

1 branch-off T-Box coupling to be fitted on DIN rails

  • For 2 hoods with lever and gasket "44.27" size and one housing "44.27" size
Télécharger la fiche produit
  • General
Article Number CYG 06H10
Protection Degree IP65
Material Housing Aluminium
Height 43 mm
Length 150
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Housing Enclosures size 44.27
Locking Mechanism Single locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Width 60 mm
Les propriétés diffèrent selon les variantes et sous-variantes
