Filter connectors with solder pot terminal

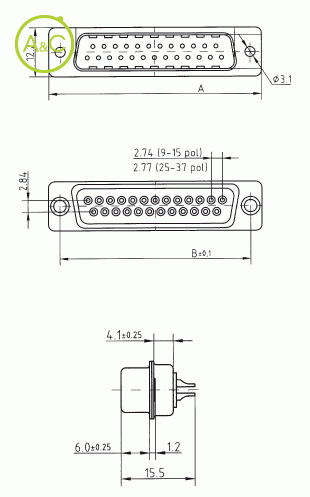

F 02 09 151 G3T

F 02 09 151 G3T

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

Number Of Poles

9
15
25
37

Article Number	F 02 09 151 G3T	F 02 09 161 G3T
Number Of Contacts	9	9
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	100	100
Insulation Resistance	1 MΩ	1 MΩ
Extra Information	With UNC 4-40 thread available	With UNC 4-40 thread available
Current Rating	Max. 5	Max. 5
Gender	Male	Female
Test Voltage U Eff	200	200
Quality Class	Class 3 = 50 mating cycles	Class 3 = 50 mating cycles
Capacitor Values****	01 = 2000 pF 02= 1000 pF 03= 500 pF 04= 250 pF 05= 120 pF 06= 43 pF 07= 22 pF 08= 15 pF 09 = 2 pF (available for non-filters pins) 10 = customized types	01 = 2000 pF 02= 1000 pF 03= 500 pF 04= 250 pF 05= 120 pF 06= 43 pF 07= 22 pF 08= 15 pF 09 = 2 pF (available for non-filters pins) 10 = customized types
Remark ****	For another capacitor value replace the 02 in the article number by the number 01,03,04,05,06,07,08,09 or 10 (on request)	For another capacitor value replace the 02 in the article number by the number 01,03,04,05,06,07,08,09 or 10 (on request)

Article Number	F 02 15 151 G3T	F 02 15 161 G3T
Number Of Contacts	15	15
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	100	100
Insulation Resistance	1 MΩ	1 MΩ
Extra Information	With UNC 4-40 thread available	With UNC 4-40 thread available
Current Rating	Max. 5	Max. 5
Gender	Male	Female
Test Voltage U Eff	200	200
Quality Class	Class 3 = 50 mating cycles	Class 3 = 50 mating cycles
Capacitor Values****	01 = 2000 pF 02= 1000 pF 03= 500 pF 04= 250 pF 05= 120 pF 06= 43 pF 07= 22 pF 08= 15 pF 09 = 2 pF (available for non-filters pins) 10 = customized types	01 = 2000 pF 02= 1000 pF 03= 500 pF 04= 250 pF 05= 120 pF 06= 43 pF 07= 22 pF 08= 15 pF 09 = 2 pF (available for non-filters pins) 10 = customized types
Remark ****	For another capacitor value replace the 02 in the article number by the number 01,03,04,05,06,07,08,09 or 10 (on request)	For another capacitor value replace the 02 in the article number by the number 01,03,04,05,06,07,08,09 or 10 (on request)

Article Number	F 02 25 151 G3T	F 02 25 161 G3T
Number Of Contacts	25	25
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	100	100
Insulation Resistance	1 MΩ	1 MΩ
Extra Information	With UNC 4-40 thread available	With UNC 4-40 thread available
Current Rating	Max. 5	Max. 5
Gender	Male	Female
Test Voltage U Eff	200	200
Quality Class	Class 3 = 50 mating cycles	Class 3 = 50 mating cycles
Capacitor Values****	01 = 2000 pF 02= 1000 pF 03= 500 pF 04= 250 pF 05= 120 pF 06= 43 pF 07= 22 pF 08= 15 pF 09 = 2 pF (available for non-filters pins) 10 = customized types	01 = 2000 pF 02= 1000 pF 03= 500 pF 04= 250 pF 05= 120 pF 06= 43 pF 07= 22 pF 08= 15 pF 09 = 2 pF (available for non-filters pins) 10 = customized types
Remark ****	For another capacitor value replace the 02 in the article number by the number 01,03,04,05,06,07,08,09 or 10 (on request)	For another capacitor value replace the 02 in the article number by the number 01,03,04,05,06,07,08,09 or 10 (on request)

Article Number	F 02 37 151 G3T	F 02 37 161 G3T
Number Of Contacts	37	37
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	100	100
Insulation Resistance	1 MΩ	1 MΩ
Extra Information	With UNC 4-40 thread available	With UNC 4-40 thread available
Current Rating	Max. 5	Max. 5
Gender	Male	Female
Test Voltage U Eff	200	200
Quality Class	Class 3 = 50 mating cycles	Class 3 = 50 mating cycles
Capacitor Values****	01 = 2000 pF 02= 1000 pF 03= 500 pF 04= 250 pF 05= 120 pF 06= 43 pF 07= 22 pF 08= 15 pF 09 = 2 pF (available for non-filters pins) 10 = customized types	01 = 2000 pF 02= 1000 pF 03= 500 pF 04= 250 pF 05= 120 pF 06= 43 pF 07= 22 pF 08= 15 pF 09 = 2 pF (available for non-filters pins) 10 = customized types
Remark ****	For another capacitor value replace the 02 in the article number by the number 01,03,04,05,06,07,08,09 or 10 (on request)	For another capacitor value replace the 02 in the article number by the number 01,03,04,05,06,07,08,09 or 10 (on request)

Les propriétés diffèrent selon les variantes et sous-variantes
