Top Entry Socket
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
JST
JST
Number Of Poles
- 22
| Article Number | HAS1-22SC00-51K |
| Number Of Contacts | 22 |
| Upper Temperature | +105 °C |
| Lower Temperature | -40 °C |
| General Description | 1.27mm Pitch Serial ATA Interface Connector |
| Connection Type | Interface Connection Connectors |
| Pitch / Style | 1.27 mm |
| Rated Current (ac/dc) | 1.5 A |
| Rated Voltage (ac/dc) | 30 V |
| Standard | Serial ATA |
| Pcb Mount Style | Surface Mount Technology (SMT) |
Les propriétés diffèrent selon les variantes et sous-variantes

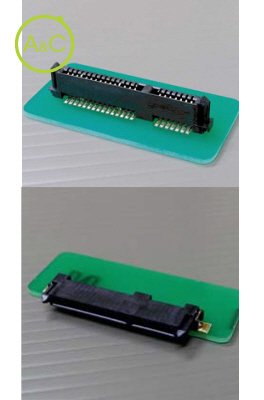

This connector is the socket (22 circuits; Signal: 7 circuits, Power: 15 circuits) to correspond to the 2.5 HDD that complies with serial ATA standard.

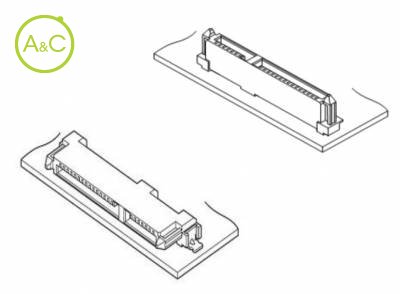

Top Entry
Space saving design
This connector height on the PC board is 9.6mm, it is designed for space saving.
For Mounting on the PC Board
This connector is with the boss for a decided position on the PC board.
Side Entry
With Reinforcent Tabs
The reinforcement tab of this connector is designed with a gull wing type solder tail, for its stronger peel strength from PC board.
Corresponding to an Automatic Mounting on the PC board
This connector is supplied the tray that is corresponded to an Automatic Mounting on the PC board.
Complying with Serial ATA standard
This connector conplies with Serial ATA standard.
EC directive 2002/95/EC (the RoHS Directive) - Compliant
