High Density connectors solder pot version

  • With machined contacts for professional applications
Télécharger la fiche produit

Number Of Poles

  • 15
  • 26
  • 44
  • 62
  • 78

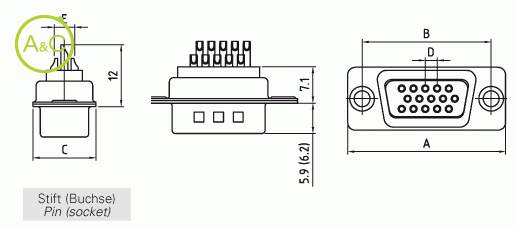

Article Number HDT 15 51 G. HT 15 61 G.
Number Of Contacts 15 15
Upper Temperature +125 °C +125 °C
Lower Temperature -55 °C -55 °C
Contact Plating Mating area: Au over Ni Termination area: Sn over Ni Mating area: Au over Ni Termination area: Sn over Ni
Housing Material St. tinned St. tinned
Contact Material Cu alloy Cu alloy
Remark* For the requested quality class please replace the "." at the end of the article no. By using 1,2,3 For the requested quality class please replace the "." at the end of the article no. By using 1,2,3
Insulation Resistance ≥10 MΩ ≥10 MΩ
Contact Resistance ≤10m ≤10m
Gender Male Female
Insulator Material Plastic, UL 94-V0 rated Plastic, UL 94-V0 rated
Mating/unmating Force Fully Loaded Connector ≤50 ≤50
Air And Creepage Distance min. 0,6 mm min. 0,6 mm
Test Voltage U Eff 1000 1000
Working Voltage 60 60
Current Rating At 20°c VDE: 3,5 A CSA: 2,5 A UL: 3 VDE: 3,5 A CSA: 2,5 A UL: 3
Quality Class* Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles
Les propriétés diffèrent selon les variantes et sous-variantes
