Receptacle Contact AWG 28 to 20

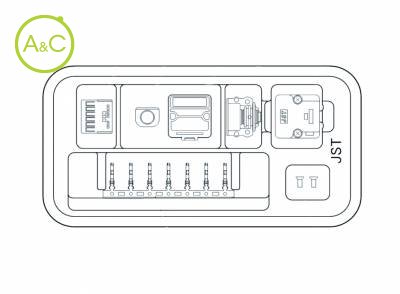

  • JFA CONNECTOR J2700 Series
Télécharger la fiche produit

Applicable Wire

  • AWG 24 to 20
  • AWG 28 to 24
Article Number SJ2F-002GF-P1.0
Upper Temperature +105 °C
Lower Temperature -55 °C
General Description 2.5mm Pitch Connector Kit for Motor
Applicable Wire Size 0.08 to 0.20 (AWG #28 to #24) mm²
Connection Type Factory Automation Connectors
Pitch / Style 2.50 mm
Rated Current (ac/dc) 7.0 A
Rated Voltage (ac/dc) 250 V
Remark* Waterproof
Les propriétés diffèrent selon les variantes et sous-variantes
6 Circuit connector for power supply of servomotor. This connector is supplied in kits, including all components. Waterproof grade: Grade 5 ingress protection of JIS C 0920 (IEC 60529 IPX5) Standards UL Recognized E60389 RoHS Compliant
