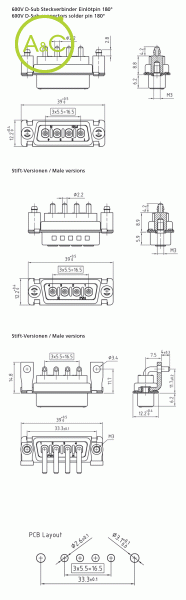

600V D-Sub connectors solder pin 180°C

  • Boardlock
Télécharger la fiche produit

Threaded Rivet

  • M3
  • UNC 4-40
Article Number MDT4W4P22G2B4 MT4W4S22G2B4
Number Of Contacts 4 4
Mating Cycles Turned contacts: 200 (class 2) Stamped contacts: 20 times Turned contacts: 200 (class 2) Stamped contacts: 20 times
Upper Temperature +125 °C +125 °C
Lower Temperature -55 °C -55 °C
Pollution Degree 1 1
Contact Plating Turned contacts: Au over Ni barrier Stamped contacts: tin plated Turned contacts: Au over Ni barrier Stamped contacts: tin plated
Operating Voltage 630 630
Contact Material Cu alloy Cu alloy
Over Voltage Category I: 2,5 kV II: 4 kV acc. To EC 60 664 I: 2,5 kV II: 4 kV acc. To EC 60 664
Current Rating Turned contacts: 20A Stamped contacts: 16 Turned contacts: 20A Stamped contacts: 16
Gender Male Female
Insulator Material PA GF UL 94-V0 PA GF UL 94-V0
Retaining Clip Material CuBE alloy CuBE alloy
Creepage/clearance ≥ 1,8 mm /3,2 ≥ 1,8 mm /3,2
Awg Range AWG 20-12 AWG 20-12
Awg Size Turned contacts: AWG 20-16 & AWG AWG 16-12 Stamped contacts: AWG 20-16 Turned contacts: AWG 20-16 & AWG AWG 16-12 Stamped contacts: AWG 20-16
Termination Type PCB 180° PCB 180°
Les propriétés diffèrent selon les variantes et sous-variantes
