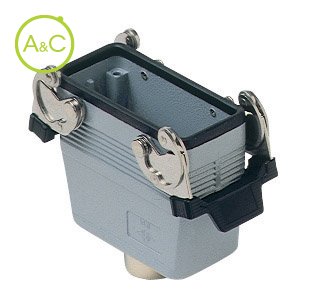

Hoods with 2 levers and gasket

  • Top entry
  • Aluminium, 1xM32
Télécharger la fiche produit
  • General
Article Number MHV 16 G32
Protection Degree IP66
Material Housing Aluminium
Height 63.5 mm
Length 93.5
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 40 P + PE; CDD 72 P + PE; CDS 27 P + PE; CSH 16 P + PE; CNE-CSE 16 P + PE; CCE 16 P + PE; CSS 16 P + PE; CQE 32 P + PE; CQEE 40 P + PE; CMCE-CMSH 6+2 (aux) P + PE; CP 6 P + PE; CX 6/36 and 12/2 P + PE; CX 4/0 and 4/2 P + PE; Mixo 4 modules; CDSH 27 P + PE; CX 6+12P + PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Top entry
Width 43 mm
Les propriétés diffèrent selon les variantes et sous-variantes
Accessoires
CHC 16
Covers with 4 pegs
CHC 16 S
Covers with 4 pegs
