- General
| Article Number | MIH-2-412-TF |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1mm Pitch Compression Type Connector |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.00 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 20 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
Les propriétés diffèrent selon les variantes et sous-variantes

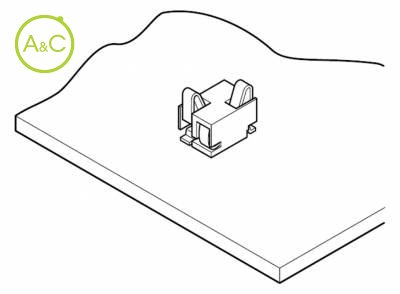

Compression type connector developed for compact equipment such as mobile phone.
Projected area is only 2.0 x 2.8mm (.079" x .110"), with 1.8mm (.071") height. Despite its smallness, the contact provides contact pressure of 0.7N per circuit thanks to the curled spring design, giving stable contact performance even under conditions of vibration.
Compact
Projected area is only 2.0 x 2.8mm (.079" x .110"), with 1.8mm (.071") height.
High contact pressure
Despite its smallness, the contact provides contact pressure of 0.7N per circuit thanks to the curled spring design, giving stable contact performance even under conditions of vibration.
Heat resistant design suitable for surface mounting
The housing is made of highly heat-resistant plastic to allow reflow soldering.

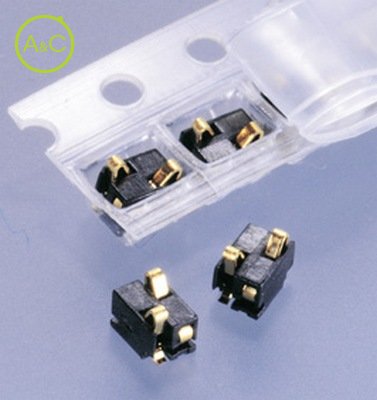

Emboss taping for automatic mounting
The MIH connector is supplied in the form of emboss taping for automatic mounting.
RoHS Compliant
