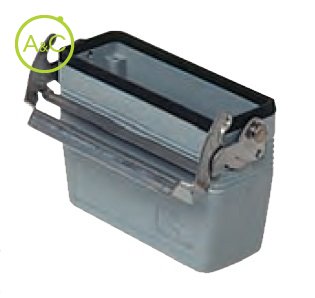

Hoods top entry, high construction, without adaptor

  • With gasket and 1 lever in stainless steel
  • Aluminium Metric entry
Télécharger la fiche produit

Entry

  • 1xM25
  • 1xM32
Article Number MVFV 06 LG25
Protection Degree IP67
Material Housing Aluminium
Height 77 mm
Length 74
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism Single locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Top entry
Width 65 mm
Les propriétés diffèrent selon les variantes et sous-variantes
Accessoires
CYG 06H06
1 branch-off T-Box coupling
CYG 06H06D
1 branch-off T-Box coupling
CYG 06H10
1 branch-off T-Box coupling to be fitted on DIN rails
CYG 06H10D
1 branch-off T-Box coupling
CYG 06H0610
2 branch-off T-Box coupling
CYG 06H1006
2 branch-off T-Box coupling
CYG 06H0606
2 branch-off T-Box coupling
CYG 06H1010
2 branch-off T-Box coupling
