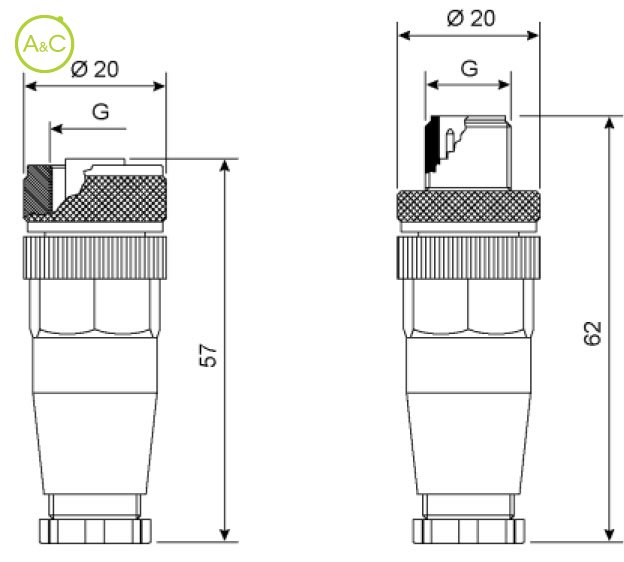

Female round connector

Stainless steel nut + plastic body

RDJ - RDJF 00410 075

RDJ - RDJF 00410 075

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

Number Of Poles

4
5
8

Article Number	RDJF 00410 075	RDJF 00410 095	RDJF 00410 125
Number Of Contacts	4	4	4
Protection Degree	IP67*	IP67*	IP67*
Upper Temperature	+90 °C	+90 °C	+90 °C
Lower Temperature	-25 °C	-25 °C	-25 °C
Cable Diameter	4-6,5 mm	6-8 mm	Double cable 2,1-3 4-5 mm
Fixing Thread	M12	M12	M12
Housing Material	Plastic	Plastic	Plastic
Housing Oil Resistance	Very good	Very good	Very good
Contact Material	Optalloy	Optalloy	Optalloy
Max. Wire Section	0,75 mm²	0,75 mm²	0,75 mm²
Locking Nut Material	Stainless steel	Stainless steel	Stainless steel
Voltage Vdc	1 to 250	1 to 250	1 to 250
Voltage Vac	1 to 250	1 to 250	1 to 250
Max. Currrent	4 A @40°C	4 A @40°C	4 A @40°C
Contact Gender	F	F	F
Coding	A	A	A
Cabling System	Screw vite	Screw vite	Screw vite
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Article Number	RDJF 00510 075	RDJF 00510 095	RDJF 00510 125
Number Of Contacts	5	5	5
Protection Degree	IP67*	IP67*	IP67*
Upper Temperature	+90 °C	+90 °C	+90 °C
Lower Temperature	-25 °C	-25 °C	-25 °C
Cable Diameter	4-6,5 mm	6-8 mm	Double cable 2,1-3 4-5 mm
Fixing Thread	M12	M12	M12
Housing Material	Plastic	Plastic	Plastic
Housing Oil Resistance	Very good	Very good	Very good
Contact Material	Optalloy	Optalloy	Optalloy
Max. Wire Section	0,75 mm²	0,75 mm²	0,75 mm²
Locking Nut Material	Stainless steel	Stainless steel	Stainless steel
Voltage Vdc	1 to 60	1 to 60	1 to 60
Voltage Vac	1 to 60	1 to 60	1 to 60
Max. Currrent	4 A @40°C	4 A @40°C	4 A @40°C
Contact Gender	F	F	F
Coding	A	A	A
Cabling System	Screw vite	Screw vite	Screw vite
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Article Number	RDJF 00810 095	RDJF 00810 125
Number Of Contacts	8	8
Protection Degree	IP67*	IP67*
Upper Temperature	+90 °C	+90 °C
Lower Temperature	-25 °C	-25 °C
Cable Diameter	6-8 mm	Double cable 2,1-3 4-5 mm
Fixing Thread	M12	M12
Housing Material	Plastic	Plastic
Housing Oil Resistance	Very good	Very good
Contact Material	Golden over nickel plated CuZn	Golden over nickel plated CuZn
Max. Wire Section	0,5 mm²	0,5 mm²
Locking Nut Material	Stainless steel	Stainless steel
Voltage Vdc	1 to 30	1 to 30
Voltage Vac	1 to 30	1 to 30
Max. Currrent	2 A @40°C	2 A @40°C
Contact Gender	F	F
Coding	A	A
Cabling System	Screw vite	Screw vite
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Les propriétés diffèrent selon les variantes et sous-variantes
