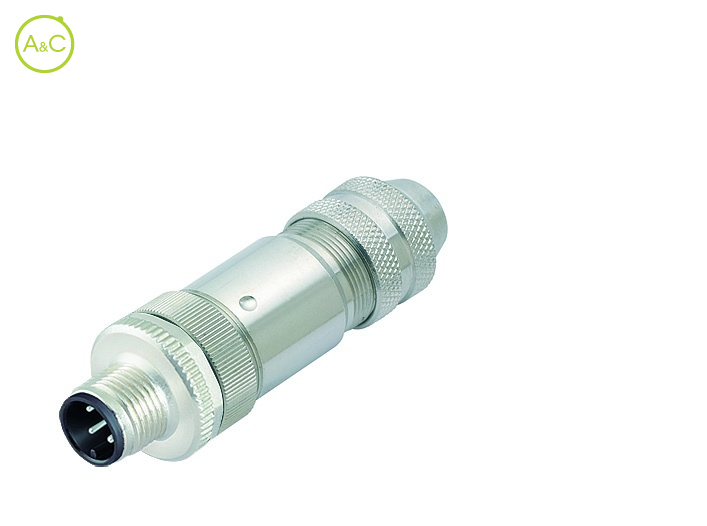

Male round connector

  • Plastic nut + plastic body
Télécharger la fiche produit

Number Of Poles

  • 4
  • 5
Article Number RDJM 00410 126
Number Of Contacts 4
Protection Degree IP67*
Upper Temperature +90 °C
Lower Temperature -25 °C
Cable Diameter Double cable 2,1-3 4-5 mm
Fixing Thread M12
Housing Material Plastic
Housing Oil Resistance Very good
Contact Material Optalloy
Max. Wire Section 0,75 mm²
Locking Nut Material Plastic
Voltage Vdc 1 to 250
Voltage Vac 1 to 250
Max. Currrent 4 A @40°C
Contact Gender M
Coding A
Cabling System Screw vite
Remark* The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Les propriétés diffèrent selon les variantes et sous-variantes
