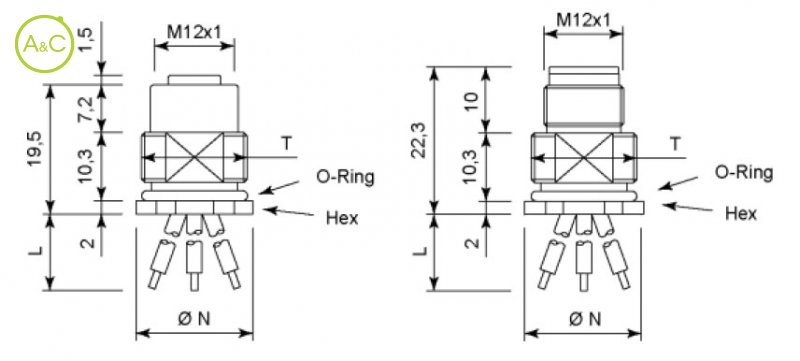

Female round receptacle

RDS - RDSF 00300

RDS - RDSF 00300

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

Number Of Poles

3
4
5
8
12

Article Number	RDSF 00300 2A1 0200 000
Number Of Contacts	3
Protection Degree	IP67 (only frontal side)*
Upper Temperature	+80 °C
Lower Temperature	-40 °C
Fixing Thread	M16
Housing Material	Nickel plated brass
Contact Material	Golden over nickel plated CuZn
Voltage Vdc	1 to 250
Voltage Vac	1 to 250
Max. Currrent	4 A @40°C
Contact Gender	F
Ground Pole	No
Max. Number Wires	3
Wire Colour	bn1, bu3, bk4
Coding	A
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Article Number	RDSF 00400 2A1 0200 000
Number Of Contacts	4
Protection Degree	IP67 (only frontal side)*
Upper Temperature	+80 °C
Lower Temperature	-40 °C
Fixing Thread	M16
Housing Material	Nickel plated brass
Contact Material	Golden over nickel plated CuZn
Voltage Vdc	1 to 250
Voltage Vac	1 to 250
Max. Currrent	4 A @40°C
Contact Gender	F
Ground Pole	No
Max. Number Wires	4
Wire Colour	bn1, wh2, bu3, bk4,
Coding	A
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Article Number	RDSF 00500 2A1 0200 000	RDSF 00530 2A1 0200 000
Number Of Contacts	5	5
Protection Degree	IP67 (only frontal side)*	IP67 (only frontal side)*
Upper Temperature	+80 °C	+80 °C
Lower Temperature	-40 °C	-40 °C
Fixing Thread	M16	M16
Housing Material	Nickel plated brass	Nickel plated brass
Contact Material	Golden over nickel plated CuZn	Golden over nickel plated CuZn
Voltage Vdc	1 to 60	1 to 60
Voltage Vac	1 to 60	1 to 60
Max. Currrent	4 A @40°C	4 A @40°C
Contact Gender	F	F
Ground Pole	No	Yes
Max. Number Wires	5	5
Wire Colour	bn1, wh2, bu3, bk4, gy5	bn1, wh2, bu3, bk4, gn/ye5
Coding	A	A
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Article Number	RDSF 00800 2A2 0200 000
Number Of Contacts	8
Protection Degree	IP67 (only frontal side)*
Upper Temperature	+80 °C
Lower Temperature	-40 °C
Fixing Thread	M16
Housing Material	Nickel plated brass
Contact Material	Golden over nickel plated CuZn
Voltage Vdc	1 to 30
Voltage Vac	1 to 30
Max. Currrent	2 A @40°C
Contact Gender	F
Ground Pole	No
Max. Number Wires	8
Wire Colour	din 47100 #1
Coding	A
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Article Number	RDSF 01200 2A2 0200 000
Number Of Contacts	12
Protection Degree	IP67 (only frontal side)*
Upper Temperature	+80 °C
Lower Temperature	-40 °C
Fixing Thread	M16
Housing Material	Nickel plated brass
Contact Material	Golden over nickel plated CuZn
Voltage Vdc	1 to 30
Voltage Vac	1 to 30
Max. Currrent	1,5 A @40°C
Contact Gender	F
Ground Pole	No
Max. Number Wires	12
Wire Colour	din 47100 #3
Coding	A
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Les propriétés diffèrent selon les variantes et sous-variantes
