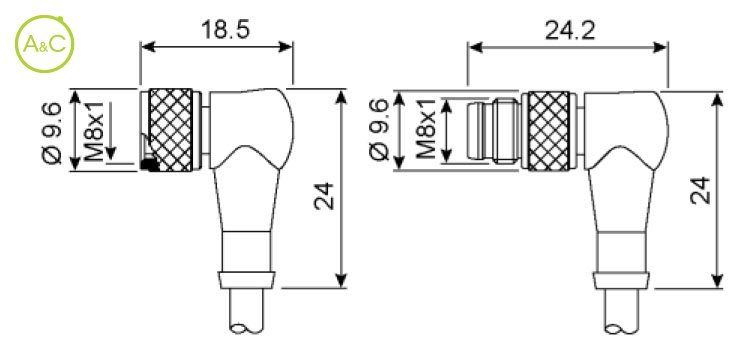

Female round connector

Avez-vous des questions sur ce produit?

Télécharger la fiche produit

Plus d’infos sur cette marque:

Article Number	REMF 0300 205 3000
Number Of Contacts	3
Protection Degree	IP65*
Upper Temperature	+90 °C
Lower Temperature	-40 °C
Housing Material	TPU
Circuits	without electronic
Housing Oil Resistance	Very good
Contact Material	Golden over nickel plated CuZn
Locking Nut Material	Brass nickel plated
Voltage Vdc	1 to 60
Voltage Vac	1 to 60
Max. Currrent	3 A @40°C
Housing Colour	Black
Contact Gender	F
Ground Pole	No
Max. Number Wires	3
Wire Colour	bn1, bu3, bk4
Coding	A
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Article Number	REMF 0400 206 3000
Number Of Contacts	4
Protection Degree	IP65*
Upper Temperature	+90 °C
Lower Temperature	-40 °C
Housing Material	TPU
Circuits	without electronic
Housing Oil Resistance	Very good
Contact Material	Golden over nickel plated CuZn
Locking Nut Material	Brass nickel plated
Voltage Vdc	1 to 30
Voltage Vac	1 to 30
Max. Currrent	3 A @40°C
Housing Colour	Black
Contact Gender	F
Ground Pole	No
Max. Number Wires	4
Wire Colour	bn1, wh2, bu3, bk4
Coding	A
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Article Number	REMF 0500 201 3000
Number Of Contacts	5
Protection Degree	IP65*
Upper Temperature	+90 °C
Lower Temperature	-40 °C
Housing Material	TPU
Circuits	without electronic
Housing Oil Resistance	Very good
Contact Material	Golden over nickel plated CuZn
Locking Nut Material	Brass nickel plated
Voltage Vdc	1 to 30
Voltage Vac	1 to 30
Max. Currrent	3 A @40°C
Housing Colour	Black
Contact Gender	F
Ground Pole	No
Max. Number Wires	5
Wire Colour	bn1, wh2, bu3, bk4, gy5
Coding	B
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Les propriétés diffèrent selon les variantes et sous-variantes
