Side Entry Locking Header THT
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
JST
JST
Number Of Poles
- 2
| Article Number | S02B-VT |
| Number Of Contacts | 2 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 11.88mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 11.88 mm |
| Rated Current (ac/dc) | 12 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Remark* | Secure locking device |
Les propriétés diffèrent selon les variantes et sous-variantes

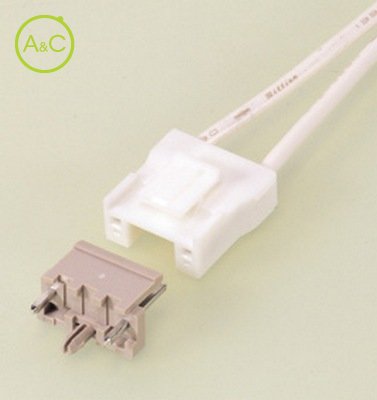

The VT connector is a 11.88mm (.468") pitch diSConnectable crimp style connector with current rating of 12A.
It has features such as the PC board locking device, misinsertion preventative construction and arm-lock mechanism.
It's header is applicable to reinforced PC boards with eyelets.
Connectable to vinyl insulated flat cables
Can be connected to vinyl insulated flat cables (such as SPT, HVFF) ranging from AWG #20 to 16 which are used for primary sides of power circuits.

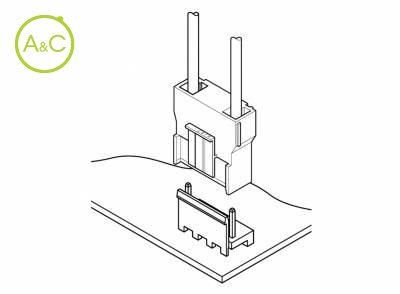

Use of PC board locking device
PC board locking device makes temporary mounting and correct positioning onto the board easy.
Correct and secure mating
Correct and secure mating thanks to the misinsertion preventative construction and arm-lock mechanism.
Applicable to reinforced PC boards with eyelets
Header is designed to be applicable to reinforced PC boards with eyelets.
Standards
UL Recognized E60389
CSA Certified LR20812
TUV Certified R9151561
RoHS Compliant
