Connector with height 1.9 to 3.2

SCK CONNECTOR

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

JST

Height

Article Number	SCK-6C-02PT-TF	SCK-8C-02PT-TF
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.54mm Pitch Connector for SIM & USIM Card	2.54mm Pitch Connector for SIM & USIM Card
Connection Type	Printed Circuit Board Connectors	Printed Circuit Board Connectors
Pitch / Style	2.54 mm	2.54 mm
Rated Current (ac/dc)	1.0 A	1.0 A
Rated Voltage (ac/dc)	30 V	30 V
Standard	SIM	SIM
Pcb Mount Style	Surface Mount Technology (SMT)	Surface Mount Technology (SMT)

Article Number	SCK-6S-02PT-TF	SCK-8S-02PT-TF
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.54mm Pitch Connector for SIM & USIM Card	2.54mm Pitch Connector for SIM & USIM Card
Connection Type	Printed Circuit Board Connectors	Printed Circuit Board Connectors
Pitch / Style	2.54 mm	2.54 mm
Rated Current (ac/dc)	1.0 A	1.0 A
Rated Voltage (ac/dc)	30 V	30 V
Standard	SIM	SIM
Pcb Mount Style	Surface Mount Technology (SMT)	Surface Mount Technology (SMT)

Article Number	SCK-6A-02PT-TF	SCK-8A-02PT-TF
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.54mm Pitch Connector for SIM & USIM Card	2.54mm Pitch Connector for SIM & USIM Card
Connection Type	Printed Circuit Board Connectors	Printed Circuit Board Connectors
Pitch / Style	2.54 mm	2.54 mm
Rated Current (ac/dc)	1.0 A	1.0 A
Rated Voltage (ac/dc)	30 V	30 V
Standard	SIM	SIM
Pcb Mount Style	Surface Mount Technology (SMT)	Surface Mount Technology (SMT)

Article Number	SCK-6B-02PT-TF
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.54mm Pitch Connector for SIM & USIM Card
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.54 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	30 V
Standard	SIM
Pcb Mount Style	Surface Mount Technology (SMT)

Les propriétés diffèrent selon les variantes et sous-variantes

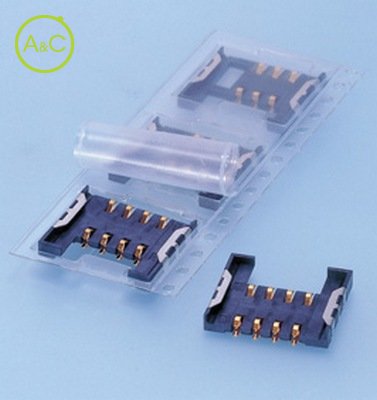

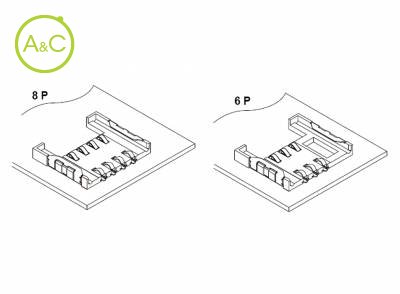

For SIM/UIM Cards. The SCK connector is designed for the SIM Card, complying with the GSM 11.11 standard, which will be used in the European digital GSM mobile phones. This connector is also suitable for the USIM Card to be used in the 3G mobile network ( W - CDMA ). Durability Durability of 10,000 times is guaranteed. Abundant variations There are abundant variations from low profile type with a height of 1.9mm (.075") to 3.2mm (.126"). Embossed tape for automatic mounting Supplied in embossed tape packaging for automatic surface mounting operation. RoHS Compliant
