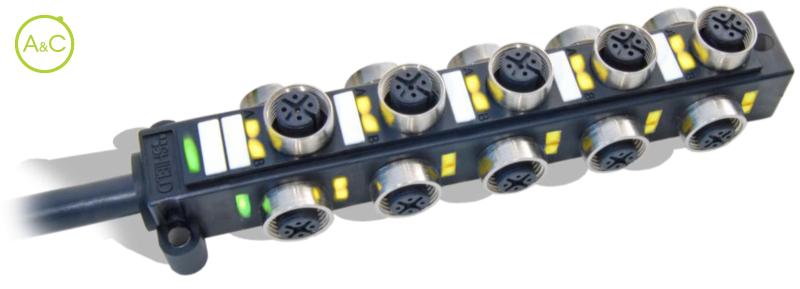

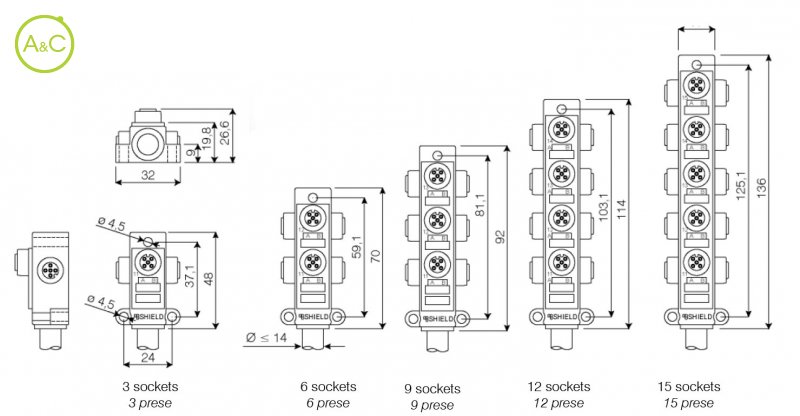

With small space profile, from 3 to 15 sockets, 2 signals each socket
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
Shield
Shield
Socket Quantity
- 3
| Article Number | SD301N7 06430 837 5000 |
| Number Of Contacts | 5 |
| Protection Degree | IP65* |
| Upper Temperature | +70 °C |
| Lower Temperature | -25 °C |
| Housing Material | TPU |
| Circuits | With LED |
| Housing Oil Resistance | Very good |
| Contact Material | Nickel & golden plated CuZn |
| Locking Nut Material | Brass nickel plated |
| Voltage With Pollution Degree 3 Vdc ** | 10 to 30 |
| Max. Currrent | 8 A for common wires, 4 A each socket, 2 A each signal A @40°C |
| Control Type | Cable |
| Coding | A |
| Connected Terminals | 1= V+, 2= B signal, 3= V-, 4= A signal, 5= ground |
| Remark* | The protection degree level is guaranteed only when correctly assembled with Shield's couterpart |
| Remark** | The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution |
Les propriétés diffèrent selon les variantes et sous-variantes
