Reverse Connector for Micro SD Card
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
JST
JST
Number Of Poles
- 8
| Article Number | SDHR-8BRS-K-363-A0-P-ETB (HF) |
| Number Of Contacts | 8 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | Micro SD Card Connector (Reverse Mounting Type) |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.1 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 100 V |
| Standard | Micro SD |
| Pcb Mount Style | Surface Mount Technology (SMT) |
Les propriétés diffèrent selon les variantes et sous-variantes

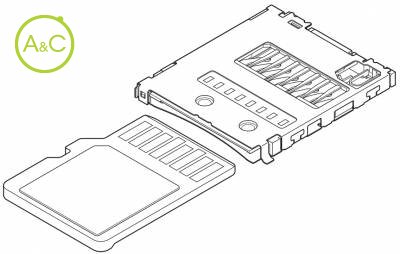

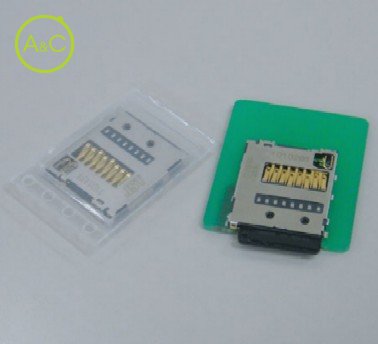

JST introduces a new reverse mounting type Micro SD Card connector, the SDHR connector, to its broad range of SD card connectors.
With push-push style for easy and smooth card insertion and extraction, this connector offers a low profile mounting height of only 1.45mm and features a detection switch that detects whether or not a memory card is currently inserted, it also features a wiping function that ensures a good electrical contact.
The Micro SD is currently the worlds smallest memory card storage system, designed for storing media files for small compact devices e.g. mobile phones.
Reverse Mounting Type
Mounting height 1.45mm
Space saving
Push push type
Halogen-free
EC directive 2002/95/EC (the RoHS Directive) - Compliant
