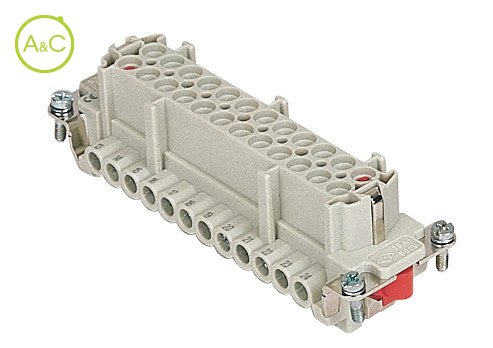

Inserts, 10 + 2(aux)P+ PE, screw terminal connection
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
Ilme
![Ilme](https://www.ac-solutions.be/themes/default/images/arrow.png)
- General
Article Number | CMEF 10 T |
Pollution Degree | 3 |
Number Of Poles | 10 |
Connection Type | Screw connection |
Contact Type | Female |
Extra Information |
With protective conductor With wire protection |
Ambient Lower Temperature | -40 °C |
Ambient Upper Temperature | 125 °C |
Min. Cross Section Without End Sleeve | 0.5 mm² |
Max. Cross Section Without End Sleeve | 4 mm² |
Required Housing |
T-type size 104.27 T-type/W size 104.27 T-type/H size 104.27 T-type/C size 104.27 W-type size 104.27 830V size 104.27 COB size 104.27 |
Diameter Male Contact | 2.5 mm |
Inflammability Class Of Insulation Material Acc. With Ul94 | V0 |
Material Insert | Thermoplastic |
Material Contact | Brass |
Plating Of Contact | Silver |
Max. Rated Current | 16 A |
Nominal Rated Voltage | 830 V |
Over Voltage Category | III |
Rated Surge Voltage | 8 kV |
Les propriétés diffèrent selon les variantes et sous-variantes
