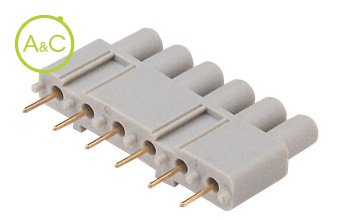

Interface for printed circuit with 6 female contacts (silver)
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
Ilme
Ilme
- General
| Article Number | CIF 2.4 A |
| Pollution Degree | 2 |
| Number Of Poles | 6 |
| Connection Type | Soldering connection |
| Contact Type | Female |
| Angle Pcb/contact | 90° (upwards vertical) |
| Diameter Pcb Pin | 0.6 mm |
| Inflammability Class Of Insulation Material Acc. With Ul94 | V0 |
| Length Pcb Pin | 4.6 mm |
| Material Insert | Thermoplastic |
| Plating Of Contact | Silver |
| Max. Rated Current | 6 A |
| Contact Pitch | 4.5 mm |
| Operation Lower Temperature | -40 °C |
| Operation Upper Temperature | 125 °C |
| Over Voltage Category | III |
| Rated Surge Voltage | 4 kV |
| Suitable For Pcb Thickness | 1.6 |
| Type Of Fastening | Solder |
Les propriétés diffèrent selon les variantes et sous-variantes
