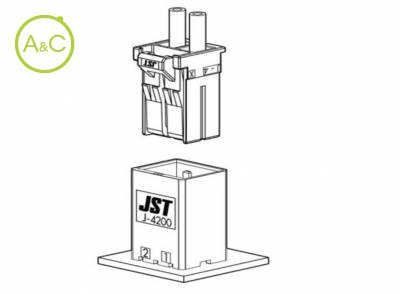

Receptacle Strip Contact AWG 16 to 12
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
JST
JST
Applicable Wire
- AWG 14 to 12
- AWG 16 to 14
| Article Number | SJ4F-71GF-M3.0 |
| Upper Temperature | +105 °C |
| Lower Temperature | -55 °C |
| General Description | 6.0mm/6.35mm Pitch Disconnectable Crimp Style |
| Applicable Wire Size | 1.25 to 2.0 (AWG #16 to #14) mm² |
| Connection Type | Factory Automation Connectors |
| Pitch / Style | 6.00/6.35 mm |
| Rated Voltage (ac/dc) | 600 V |
Les propriétés diffèrent selon les variantes et sous-variantes
Compact and high current capacity connector. This connector realizes high-density mounting on PC board.
High current capacity
Center locking
Housing lance
Countermeasure for insertion of foreign substances
Standards
UL Recognized E60389
RoHS Compliant
