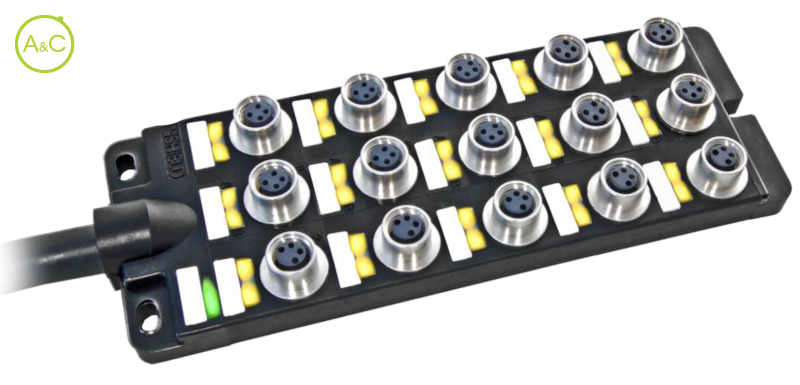

High density, from 6 to 15 sockets, 2 signals each socket

Without LED

SK34 - SK342N7 00200

SK34 - SK342N7 00200

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

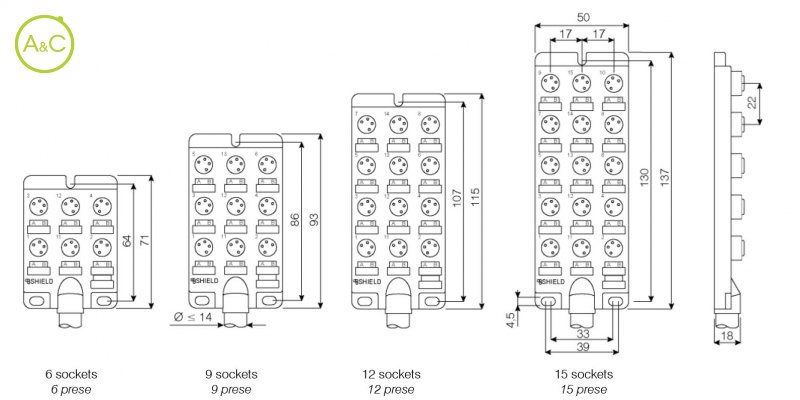

Socket Quantity

6
9
12
15

Article Number	SK342N7 00200 328 5000
Number Of Contacts	4
Protection Degree	IP65*
Upper Temperature	+80 °C
Lower Temperature	-25 °C
Housing Material	TPU
Circuits	Without LED
Housing Oil Resistance	Very good
Contact Material	Nickel & golden plated CuZn
Locking Nut Material	Brass nickel plated
Voltage With Pollution Degree 3 Vdc **	1 to 30
Max. Currrent	6 A for common wires, 3 A each socket A @40°C
Control Type	Cable
Coding	A
Connected Terminals	1= V+, 2= B signal, 3= V-, 4= A signal
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark**	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution

Article Number	SK343N7 00200 319 5000
Number Of Contacts	4
Protection Degree	IP65*
Upper Temperature	+80 °C
Lower Temperature	-25 °C
Housing Material	TPU
Circuits	Without LED
Housing Oil Resistance	Very good
Contact Material	Nickel & golden plated CuZn
Locking Nut Material	Brass nickel plated
Voltage With Pollution Degree 3 Vdc **	1 to 30
Max. Currrent	6 A for common wires, 3 A each socket A @40°C
Control Type	Cable
Coding	A
Connected Terminals	1= V+, 2= B signal, 3= V-, 4= A signal
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark**	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution

Article Number	SK344N7 00200 230 5000
Number Of Contacts	4
Protection Degree	IP65*
Upper Temperature	+80 °C
Lower Temperature	-25 °C
Housing Material	TPU
Circuits	Without LED
Housing Oil Resistance	Very good
Contact Material	Nickel & golden plated CuZn
Locking Nut Material	Brass nickel plated
Voltage With Pollution Degree 3 Vdc **	1 to 30
Max. Currrent	6 A for common wires, 3 A each socket A @40°C
Control Type	Cable
Coding	A
Connected Terminals	1= V+, 2= B signal, 3= V-, 4= A signal
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark**	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution

Article Number	SK345N7 00200 211 5000
Number Of Contacts	4
Protection Degree	IP65*
Upper Temperature	+80 °C
Lower Temperature	-25 °C
Housing Material	TPU
Circuits	Without LED
Housing Oil Resistance	Very good
Contact Material	Nickel & golden plated CuZn
Locking Nut Material	Brass nickel plated
Voltage With Pollution Degree 3 Vdc **	1 to 30
Max. Currrent	6 A for common wires, 3 A each socket A @40°C
Control Type	Cable
Coding	A
Connected Terminals	1= V+, 2= B signal, 3= V-, 4= A signal
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark**	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution

Les propriétés diffèrent selon les variantes et sous-variantes
