Plug Contact AWG 24 to 14

RWZ CONNECTOR L-Type

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

JST

Applicable Wire

AWG 18 to 14
AWG 22 to 18
AWG 24 to 20

Article Number	SRWM-61GG-S0.6
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Disconnectable Crimp Style
Applicable Wire Size	0.75 to 2.0 (AWG #18 to #14) mm²
Connection Type	Wire to Wire Connectors
Pitch / Style	1.25 mm
Rated Current (ac/dc)	Signl/1.0 Power/15 A
Rated Voltage (ac/dc)	Signl/50 Power/250 V

Article Number	SRWM-21GG-S0.6
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Disconnectable Crimp Style
Applicable Wire Size	0.3 to 0.75 (AWG #22 to #18) mm²
Connection Type	Wire to Wire Connectors
Pitch / Style	1.25 mm
Rated Current (ac/dc)	Signl/1.0 Power/15 A
Rated Voltage (ac/dc)	Signl/50 Power/250 V

Article Number	SRWM-01GG-S0.6
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Disconnectable Crimp Style
Applicable Wire Size	0.20 to 0.5 (AWG #24 to #20) mm²
Connection Type	Wire to Wire Connectors
Pitch / Style	1.25 mm
Rated Current (ac/dc)	Signl/1.0 Power/15 A
Rated Voltage (ac/dc)	Signl/50 Power/250 V

Les propriétés diffèrent selon les variantes et sous-variantes

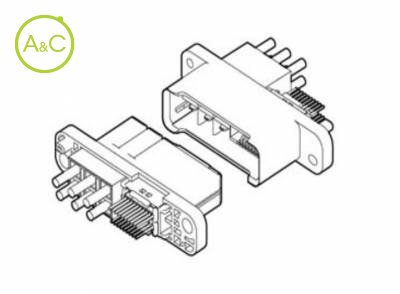

This connector is a hybrid type double-row drawer connector combined signal and power supply circuits connector to connect the units. RWZ connector with lever locking device is adopted as applicable socket to prevent incomplete mating. Signal circuit 1.5mm pitch lever-locking type Hybrid type High durability Absorbed misalignment mechanism RoHS Compliant
