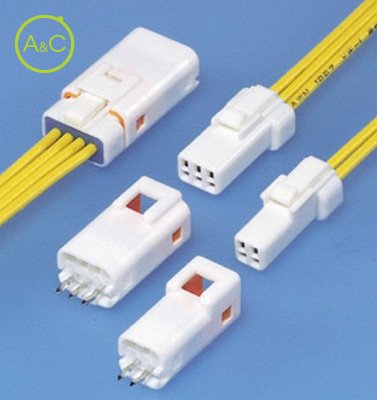

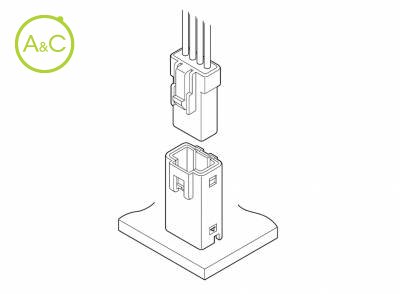

The JWPF Series Wire to Board connector is designed for small applications that require resistance to water ingress. Uniquely constructed, this Waterproof 2.0mm (.079") pitch connector features a spring action housing to terminal lock, which assures smooth and easy insertion and firm contact retention. The connector also incorporates a solid rubber seal for wire side sealing, which facilitates a compact size and ensures a waterproof grade of more than 7 ingress protection of JIC C 0920 (IP X7 of IEC 60529). Waterproof performance More than grade 7 ingress protection of JIC C 0920. (IEC 60529 IPX7) Contained seal ring Seal ring is applied for complete sealing at mating side that is contained in header, which protects from dust, SCratch, etc. Solid rubber seal Solid rubber seal is used for wire side sealing that makes the size compact. Double-spring construction Contact has double-spring construction, main spring and assist spring, that ensures superior contact force. Housing-to-terminal locks Spring action housing-to-terminal locks are inherent part of the housing, and assure smooth contact insertion and firm contact retention yet with low insertion force. Inner housing lock This inner housing lock secures the plug to the receptacles and prevents accidental diSConnection. The lock with protector on both sides is protected and is not affected by external forces that might result from the routing of wires. Interchangeability Designed to accept wire-to-wire JWPF connector receptacle. Header for use specifically with resin coated ("potted") PC board This header is tall and fully shrouded so as to prevent the resin used to coat the PC board from coming into contact with the mating pins. Standards UL Recognized E60389 RoHS Compliant
