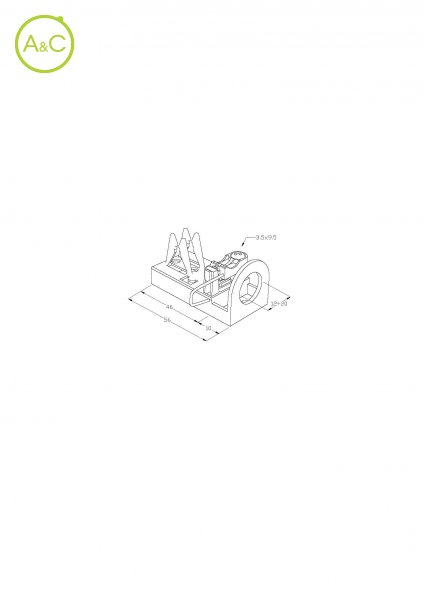

Terminal block support with cable clamp

THA.015.A1A

THA.015.A1A

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

∅ Cable Gland Hole

12
16
20
NA

Article Number	THA.015.A1A	THA.015.A1B
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C
Min-max Cable Diameter	max 10,0 mm	max 10,0 mm
Body	PA66 GF UL94 V2 GWT 850°C black	PA66 GF UL94 V2 GWT 850°C black
Screw	∅ 3.5 x 9.5 self-screwing steel zinc plated	∅ 3.5 x 9.5 self-screwing steel zinc plated
Standards	EN60598-1-2004+A1:2006	EN60598-1-2004+A1:2006

Article Number	THA.015.A2A	THA.015.A2B
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C
Min-max Cable Diameter	max 10,0 mm	max 10,0 mm
Body	PA66 GF UL94 V2 GWT 850°C black	PA66 GF UL94 V2 GWT 850°C black
Screw	∅ 3.5 x 9.5 self-screwing steel zinc plated	∅ 3.5 x 9.5 self-screwing steel zinc plated
Standards	EN60598-1-2004+A1:2006	EN60598-1-2004+A1:2006

Article Number	THA.015.A3A	THA.015.A3B
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C
Min-max Cable Diameter	max 10,0 mm	max 10,0 mm
Body	PA66 GF UL94 V2 GWT 850°C black	PA66 GF UL94 V2 GWT 850°C black
Screw	∅ 3.5 x 9.5 self-screwing steel zinc plated	∅ 3.5 x 9.5 self-screwing steel zinc plated
Standards	EN60598-1-2004+A1:2006	EN60598-1-2004+A1:2006

Article Number	THA.015.B0A	THA.015.B0B
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C
Min-max Cable Diameter	max 10,0 mm	max 10,0 mm
Body	PA66 GF UL94 V2 GWT 850°C black	PA66 GF UL94 V2 GWT 850°C black
Screw	∅ 3.5 x 9.5 self-screwing steel zinc plated	∅ 3.5 x 9.5 self-screwing steel zinc plated
Standards	EN60598-1-2004+A1:2006	EN60598-1-2004+A1:2006

Les propriétés diffèrent selon les variantes et sous-variantes
