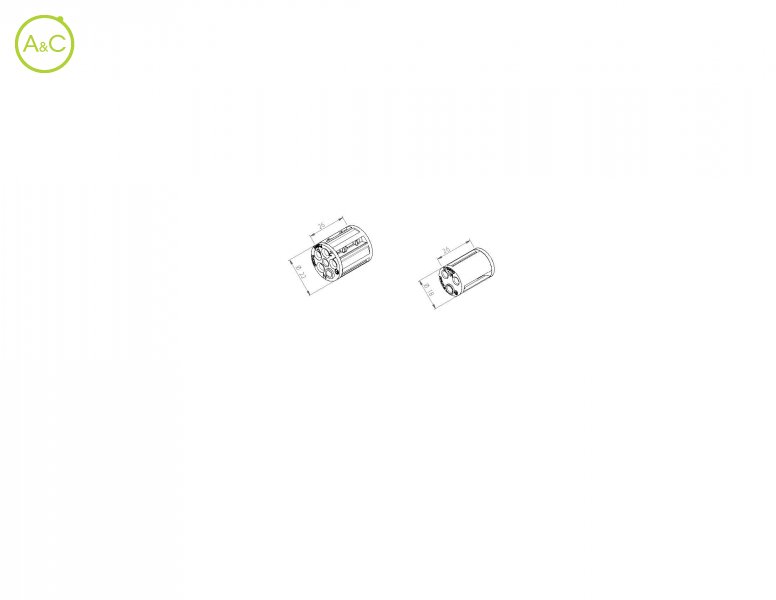

Compact round terminal block

THB.020.E1A

THB.020.E1A

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

Number Of Poles

2
2+2
3
3+3
5
6

Article Number	THB.020.E1A	THP.020.E1A	THB.020.E3A
Number Of Contacts	2	2	2
Protection Degree	IP00	IP00	IP00
Upper Temperature	+125 °C	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Rated Voltage	450	450	450
Rated Current	32 A	17.5 A	24 A
Contact Terminal	End barrier contact	Piercing clip terminals max 1,5 mm²	WP contact for cable section < 1,0 mm²
Terminals	Screw	Piercing	Screw
Cable Section	max 4,0 mm²	0,5 - 1,5 mm²	max 2,5 mm²
T Marking	T125 °C	T125 °C	T125 °C
Tracking Index	PTI 250	PTI 250	PTI 250
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C black - brown	PA66 GF UL94 V0 GWT 960°C black - brown	PA66 GF UL94 V0 GWT 960°C black - brown
Contact Screw Terminals	Brass nickel plated	Brass nickel plated	Brass nickel plated
Screw	M3 steel zinc brass plated	M3 steel zinc plated	M3 steel zinc brass plated
Standards	EN60998-1:2004 EN60998-2-1:2004	EN60998-1:2004 EN60998-2-1:2004	EN60998-1:2004 EN60998-2-1:2004

Article Number	THB.020.F2A	THP.020.F2A
Number Of Contacts	2+2	2+2
Protection Degree	IP00	IP00
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	450	450
Rated Current	32 A	17.5 A
Contact Terminal	Multiple contact	Piercing clip terminals max 1,5 mm²
Terminals	Screw	Piercing
Cable Section	max 4,0 mm²	0,5 - 1,5 mm²
T Marking	T125 °C	T125 °C
Tracking Index	PTI 250	PTI 250
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C black - brown	PA66 GF UL94 V0 GWT 960°C black - brown
Contact Screw Terminals	Brass nickel plated	Brass nickel plated
Screw	M3 steel zinc brass plated	M3 steel zinc plated
Standards	EN60998-1:2004 EN60998-2-1:2004	EN60998-1:2004 EN60998-2-1:2004

Article Number	THB.020.A1A	THP.020.A1A	THB.020.A3A
Number Of Contacts	3	3	3
Protection Degree	IP00	IP00	IP00
Upper Temperature	+125 °C	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Rated Voltage	450	450	450
Rated Current	32 A	17.5 A	24 A
Contact Terminal	End barrier contact	Piercing clip terminals max 1,5 mm²	WP contact for cable section < 1,0 mm²
Terminals	Screw	Piercing	Screw
Cable Section	max 4,0 mm²	0,5 - 1,5 mm²	max 2,5 mm²
T Marking	T125 °C	T125 °C	T125 °C
Tracking Index	PTI 250	PTI 250	PTI 250
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C black - brown	PA66 GF UL94 V0 GWT 960°C black - brown	PA66 GF UL94 V0 GWT 960°C black - brown
Contact Screw Terminals	Brass nickel plated	Brass nickel plated	Brass nickel plated
Screw	M3 steel zinc brass plated	M3 steel zinc plated	M3 steel zinc brass plated
Standards	EN60998-1:2004 EN60998-2-1:2004	EN60998-1:2004 EN60998-2-1:2004	EN60998-1:2004 EN60998-2-1:2004

Article Number	THB.020.C2A	THP.020.C2A
Number Of Contacts	3+3	3+3
Protection Degree	IP00	IP00
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	450	450
Rated Current	24 A	17.5 A
Contact Terminal	Multiple contact	Piercing clip terminals max 1,5 mm²
Terminals	Screw	Piercing
Cable Section	max 2,5 mm²	0,5 - 1,5 mm²
T Marking	T125 °C	T125 °C
Tracking Index	PTI 250	PTI 250
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C black - brown	PA66 GF UL94 V0 GWT 960°C black - brown
Contact Screw Terminals	Brass nickel plated	Brass nickel plated
Screw	M3 steel zinc brass plated	M3 steel zinc plated
Standards	EN60998-1:2004 EN60998-2-1:2004	EN60998-1:2004 EN60998-2-1:2004

Article Number	THB.020.B1A	THP.020.B1A	THB.020.B3A
Number Of Contacts	5	5	5
Protection Degree	IP00	IP00	IP00
Upper Temperature	+125 °C	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Rated Voltage	450	450	450
Rated Current	32 A	17.5 A	24 A
Contact Terminal	End barrier contact	Piercing clip terminals max 1,5 mm²	WP contact for cable section < 1,0 mm²
Terminals	Screw	Piercing	Screw
Cable Section	max 4,0 mm²	0,5 - 1,5 mm²	max 2,5 mm²
T Marking	T125 °C	T125 °C	T125 °C
Tracking Index	PTI 250	PTI 250	PTI 250
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C black - brown	PA66 GF UL94 V0 GWT 960°C black - brown	PA66 GF UL94 V0 GWT 960°C black - brown
Contact Screw Terminals	Brass nickel plated	Brass nickel plated	Brass nickel plated
Screw	M3 steel zinc brass plated	M3 steel zinc plated	M3 steel zinc brass plated
Standards	EN60998-1:2004 EN60998-2-1:2004	EN60998-1:2004 EN60998-2-1:2004	EN60998-1:2004 EN60998-2-1:2004

Article Number	THB.020.D1A	THP.020.D1A	THB.020.D3A
Number Of Contacts	6	6	6
Protection Degree	IP00	IP00	IP00
Upper Temperature	+125 °C	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Rated Voltage	450	450	450
Rated Current	32 A	17.5 A	24 A
Contact Terminal	End barrier contact	Piercing clip terminals max 1,5 mm²	WP contact for cable section < 1,0 mm²
Terminals	Screw	Piercing	Screw
Cable Section	max 4,0 mm²	0,5 - 1,5 mm²	max 2,5 mm²
T Marking	T125 °C	T125 °C	T125 °C
Tracking Index	PTI 250	PTI 250	PTI 250
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C black - brown	PA66 GF UL94 V0 GWT 960°C black - brown	PA66 GF UL94 V0 GWT 960°C black - brown
Contact Screw Terminals	Brass nickel plated	Brass nickel plated	Brass nickel plated
Screw	M3 steel zinc brass plated	M3 steel zinc plated	M3 steel zinc brass plated
Standards	EN60998-1:2004 EN60998-2-1:2004	EN60998-1:2004 EN60998-2-1:2004	EN60998-1:2004 EN60998-2-1:2004

Les propriétés diffèrent selon les variantes et sous-variantes
