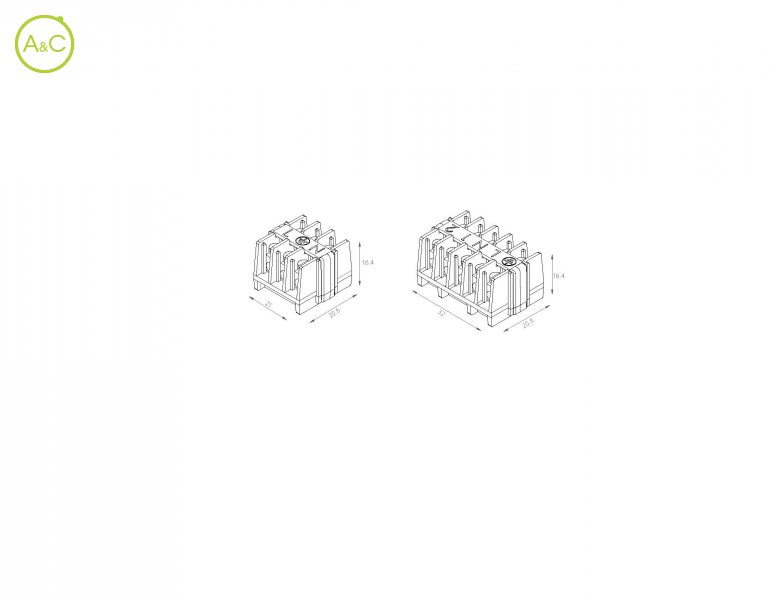

Compact linear terminal block

PA66 GF V0 125°C

THB.026.C1A

THB.026.C1A

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

Number Of Poles

2
3
5

Article Number	THB.026.C1A	THP.026.C1A	THB.026.C2A
Number Of Contacts	2	2	2
Protection Degree	IP00	IP00	IP00
Upper Temperature	+125 °C	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Rated Voltage	450	450	450
Rated Current	32 A	17.5 A	24 A
Contact Terminal	STD contact	Piercing clip terminals max 1,5 mm²	WP contact for cable section < 1,0 mm²
Terminals	Srew	Piercing	Srew
Cable Section	max 4,0 mm²	0,5 -1,5 mm²	max 2,5 mm²
T Marking	T125 °C	T125 °C	T125 °C
Protection Degree Details	can install inside TEEBOX	can install inside TEEBOX	can install inside TEEBOX
Tracking Index	PTI 175	PTI 175	PTI 175
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C brown	PA66 GF UL94 V0 GWT 960°C brown	PA66 GF UL94 V0 GWT 960°C brown
Contact Screw Terminals	Brass nickel plated	Brass nickel plated	Brass nickel plated
Standard / Piercing Screws	M3 steel zinc plated	M3 steel zinc brass plated	M3 steel zinc plated
Standards	EN60998-1:2004 EN60998-2-1:2004	EN60998-1:2004 EN60998-2-1:2004	EN60998-1:2004 EN60998-2-1:2004

Article Number	THB.026.B1A	THP.026.B1A	THB.026.B2A
Number Of Contacts	3	3	3
Protection Degree	IP00	IP00	IP00
Upper Temperature	+125 °C	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Rated Voltage	450	450	450
Rated Current	32 A	17.5 A	24 A
Contact Terminal	STD contact	Piercing clip terminals max 1,5 mm²	WP contact for cable section < 1,0 mm²
Terminals	Srew	Piercing	Srew
Cable Section	max 4,0 mm²	0,5 -1,5 mm²	max 2,5 mm²
T Marking	T125 °C	T125 °C	T125 °C
Protection Degree Details	can install inside TEEBOX	can install inside TEEBOX	can install inside TEEBOX
Tracking Index	PTI 175	PTI 175	PTI 175
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C brown	PA66 GF UL94 V0 GWT 960°C brown	PA66 GF UL94 V0 GWT 960°C brown
Contact Screw Terminals	Brass nickel plated	Brass nickel plated	Brass nickel plated
Standard / Piercing Screws	M3 steel zinc plated	M3 steel zinc brass plated	M3 steel zinc plated
Standards	EN60998-1:2004 EN60998-2-1:2004	EN60998-1:2004 EN60998-2-1:2004	EN60998-1:2004 EN60998-2-1:2004

Article Number	THB.026.A1A	THP.026.A1A	THB.026.A2A
Number Of Contacts	5	5	5
Protection Degree	IP00	IP00	IP00
Upper Temperature	+125 °C	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Rated Voltage	450	450	450
Rated Current	32 A	17.5 A	24 A
Contact Terminal	STD contact	Piercing clip terminals max 1,5 mm²	WP contact for cable section < 1,0 mm²
Terminals	Srew	Piercing	Srew
Cable Section	max 4,0 mm²	0,5 -1,5 mm²	max 2,5 mm²
T Marking	T125 °C	T125 °C	T125 °C
Protection Degree Details	can install inside TEEBOX	can install inside TEEBOX	can install inside TEEBOX
Tracking Index	PTI 175	PTI 175	PTI 175
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C brown	PA66 GF UL94 V0 GWT 960°C brown	PA66 GF UL94 V0 GWT 960°C brown
Contact Screw Terminals	Brass nickel plated	Brass nickel plated	Brass nickel plated
Standard / Piercing Screws	M3 steel zinc plated	M3 steel zinc brass plated	M3 steel zinc plated
Standards	EN60998-1:2004 EN60998-2-1:2004	EN60998-1:2004 EN60998-2-1:2004	EN60998-1:2004 EN60998-2-1:2004

Les propriétés diffèrent selon les variantes et sous-variantes
