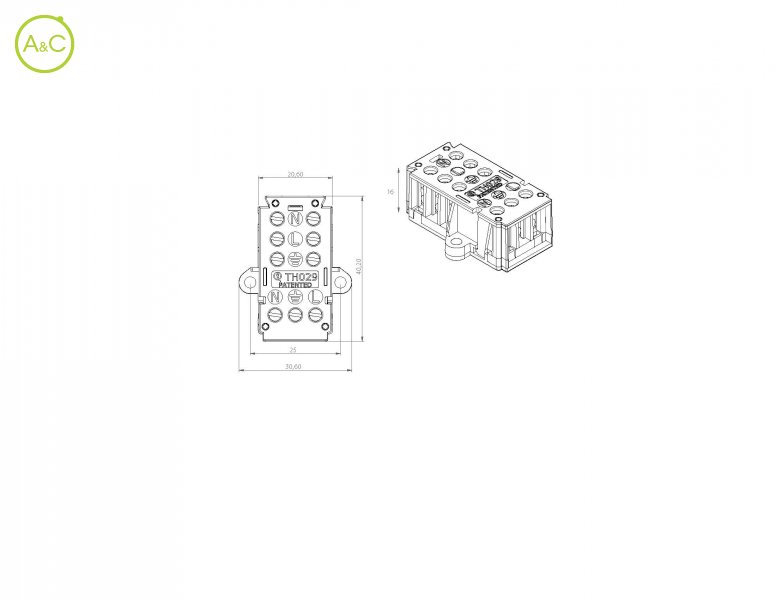

Compact current distributor

Télécharger la fiche produit

Number Of Poles

  • 2+2
  • 3+3
Article Number THB.029.A2A THP.029.A2A
Number Of Contacts 2+2 2+2
Protection Degree IP00 IP00
Upper Temperature +125 °C +125 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 450 450
Rated Current 32 A 17.5 A
Contact Terminal STD contact Piercing clip terminals max 1,5 mm²
Terminals Screw Piercing
Cable Section max 4,0 mm² 0,5 -1,5 mm²
T Marking T125 °C T125 °C
Protection Degree Details can install inside TEEBOX can install inside TEEBOX
Tracking Index PTI 175 PTI 175
Terminal Block Housing PA66 GF UL94 V0 GWT 960°C brown PA66 GF UL94 V0 GWT 960°C brown
Contact Screw Terminals Brass nickel plated Brass nickel plated
Standard / Piercing Screws M3 steel zinc plated M3 steel zinc brass plated
Standards EN60998-1:2004 EN60998-2-1:2004 EN60998-1:2004 EN60998-2-1:2004
Les propriétés diffèrent selon les variantes et sous-variantes
