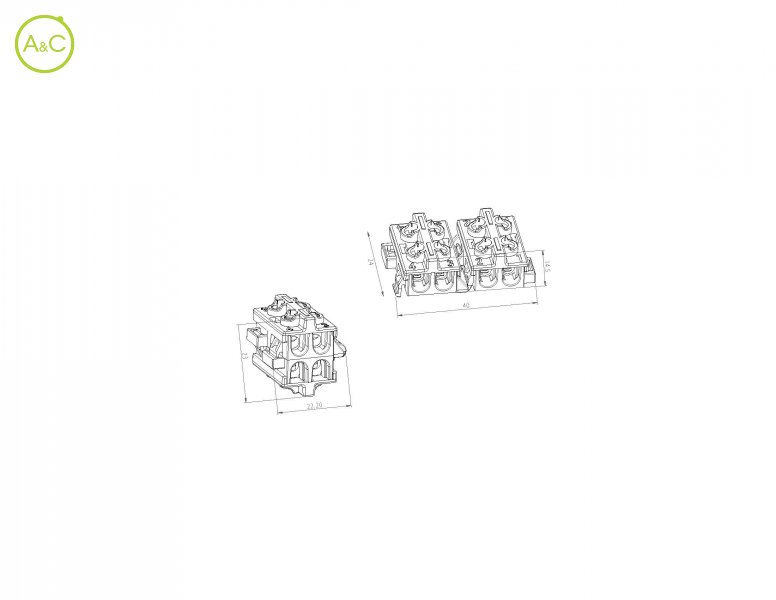

Compact round terminal block with hinge
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
Techno
Techno
Number Of Poles
- 4
| Article Number | THB.033.A4A | THP.033.A4A | THB.033.A4C | THP.033.A4C |
| Number Of Contacts | 4 | 4 | 4 | 4 |
| Protection Degree | IP00 | IP00 | IP00 | IP00 |
| Upper Temperature | +125 °C | +125 °C | +125 °C | +125 °C |
| Lower Temperature | -40 °C | -40 °C | -40 °C | -40 °C |
| Rated Voltage | 450 | 450 | 450 | 450 |
| Rated Current | 32 A | 17.5 A | 24 A | 17.5 A |
| Contact Terminal | End barrier contact | Piercing clip terminals max 1,5 mm² | WP contact for cable section < 1,0 mm² | Piercing clip terminals max 1,5 mm² |
| Terminals | Screw | Piercing | Screw | Piercing |
| Cable Section | max 4,0 mm² | max 4,0 mm² | max 2,5 mm² | max 2,5 mm² |
| T Marking | T125 °C | T125 °C | T125 °C | T125 °C |
| Tracking Index | PTI 250 | PTI 250 | PTI 250 | PTI 250 |
| Terminal Block Housing | PA66 GF UL94 V0 GWT 960°C black | PA66 GF UL94 V0 GWT 960°C black | PA66 GF UL94 V0 GWT 960°C black | PA66 GF UL94 V0 GWT 960°C black |
| Contact Screw Terminals | Brass nickel plated | Brass nickel plated | Brass nickel plated | Brass nickel plated |
| Screw | M3 steel zinc plated | M3 steel zinc brass plated | M3 steel zinc plated | M3 steel zinc brass plated |
| Standards | EN60998-1:2005 EN60998-2-1:2005 EN60998-2-3:2005 | EN60998-1:2005 EN60998-2-1:2005 EN60998-2-3:2005 | EN60998-1:2005 EN60998-2-1:2005 EN60998-2-3:2005 | EN60998-1:2005 EN60998-2-1:2005 EN60998-2-3:2005 |
Les propriétés diffèrent selon les variantes et sous-variantes
