IP20 protection, Junction boxes empty and with terminal blocks

SNAP-IN fixing system

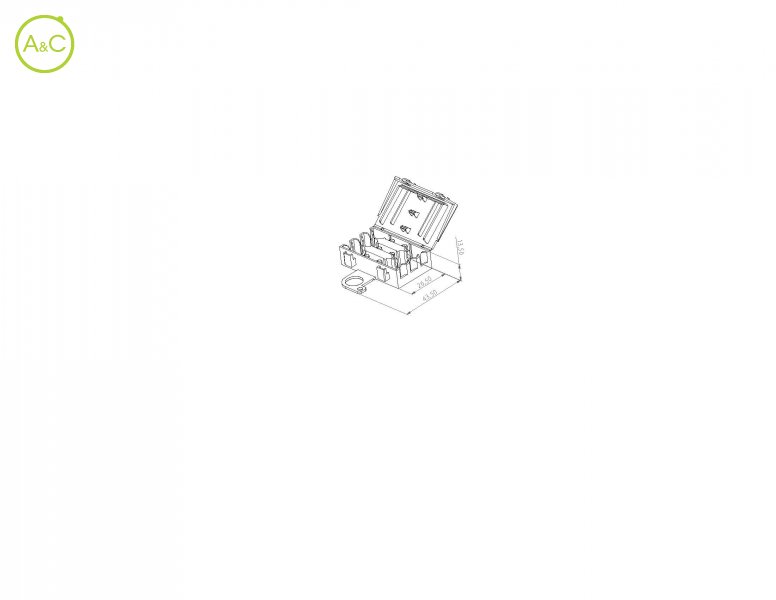

THB.100.A2A

THB.100.A2A

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

Number Of Poles

2
3

Article Number	THB.100.A2A	THP.100.A2A	THB.100.A4A
Number Of Contacts	2	2	2
Protection Degree	IP20	IP20	IP20
Upper Temperature	+125 °C	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Rated Voltage	450	450	450
Rated Current	24 A	24 A	24 A
Contact Terminal	Std contact	Piercing clip terminals max 1,5 mm²	WP contact for cable section < 1,0 mm²
Terminals	Screw	Piercing	Screw
Cable Section	max 2,5 mm²	0,5 - 1,5 mm²	max 2,5 mm²
Min-max Cable Diameter	single cables mm	single cables mm	single cables mm
Cable Entries/exits	2 ways	2 ways	2 ways
T Marking	T85 °C	T85 °C	T85 °C
Tracking Index	PTI 250	PTI 250	PTI 250
Terminal Block Housing	PA66 UL94 V2 GWT 850°C natural	PA66 UL94 V2 GWT 850°C natural	PA66 UL94 V2 GWT 850°C natural
Contact Screw Terminals	Brass nickel plated	Brass nickel plated	Brass nickel plated
Standard Screws	M3 steel zinc plated	M3 steel zinc brass plated	M3 steel zinc plated
Standards	EN60998-1:2004 EN60998-2-1:2004	EN60998-1:2004 EN60998-2-1:2004	EN60998-1:2004 EN60998-2-1:2004

Article Number	THB.100.A3A	THP.100.A3A	THB.100.A6A
Number Of Contacts	3	3	3
Protection Degree	IP20	IP20	IP20
Upper Temperature	+125 °C	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Rated Voltage	450	450	450
Rated Current	24 A	24 A	24 A
Contact Terminal	Std contact	Piercing clip terminals max 1,5 mm²	WP contact for cable section < 1,0 mm²
Terminals	Screw	Piercing	Screw
Cable Section	max 2,5 mm²	0,5 - 1,5 mm²	max 2,5 mm²
Min-max Cable Diameter	single cables mm	single cables mm	single cables mm
Cable Entries/exits	2 ways	2 ways	2 ways
T Marking	T85 °C	T85 °C	T85 °C
Tracking Index	PTI 250	PTI 250	PTI 250
Terminal Block Housing	PA66 UL94 V2 GWT 850°C natural	PA66 UL94 V2 GWT 850°C natural	PA66 UL94 V2 GWT 850°C natural
Contact Screw Terminals	Brass nickel plated	Brass nickel plated	Brass nickel plated
Standard Screws	M3 steel zinc plated	M3 steel zinc brass plated	M3 steel zinc plated
Standards	EN60998-1:2004 EN60998-2-1:2004	EN60998-1:2004 EN60998-2-1:2004	EN60998-1:2004 EN60998-2-1:2004

Les propriétés diffèrent selon les variantes et sous-variantes
