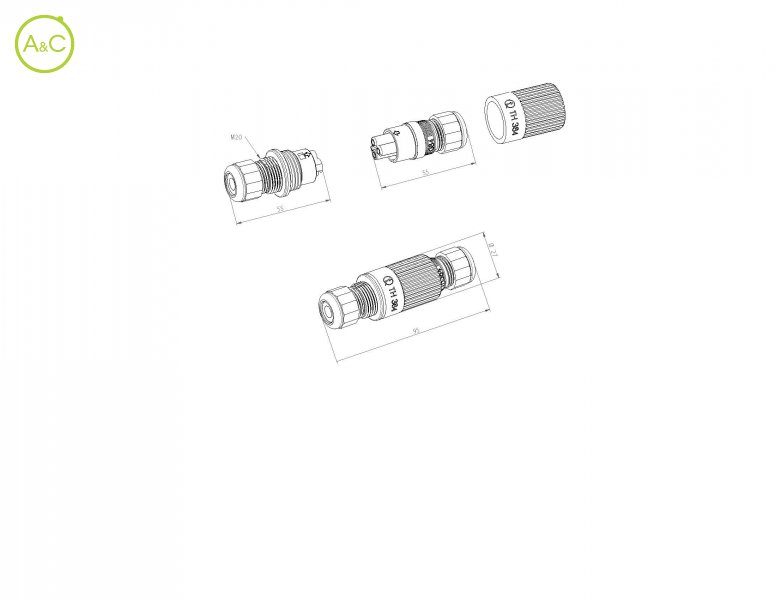

IP54-66-68 Panel-mount insert Power Socket

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

Techno

Number Of Poles

Article Number	THB.384.B2A	THP.384.B2A	THB.384.M2A	THP.384.M2A
Number Of Contacts	2	2	2	2
Protection Degree	IP66-68	IP66-68	IP54	IP54
Upper Temperature	+125 °C	+125 °C	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C	-40 °C	-40 °C
Rated Voltage	400	400	400	400
Pollution Degree	2	2	2	2
Rated Current	17.5 A	17.5 A	17.5 A	17.5 A
Contact Terminal	Contact screw terminals. For cable section < 1.0 mm²	Piercing clip terminals max 1,5 mm²	Contact screw terminals. For cable section < 1.0 mm²	Piercing clip terminals max 1,5 mm²
Terminals	Screw	Piercing	Screw	Piercing
Cable Section	max 4,0 mm²	0,5 - 1,5 mm²	max 4,0 mm²	0,5 - 1,5 mm²
Min-max Cable Diameter	7,0 - 12,0 mm	7,0 - 12,0 mm	7,0 - 12,0 mm	7,0 - 12,0 mm
T Marking	T85 °C	T85 °C	T85 °C	T85 °C
Protection Degree Details	5 bar (50 m / 24 h)	5 bar (50 m / 24 h)	5 bar (50 m / 24 h)	5 bar (50 m / 24 h)
Impulse Withstand Category	II	II	II	II
Impulse Withstand Voltage	4 kV	4 kV	4 kV	4 kV
Tracking Index	PTI 175	PTI 175	PTI 175	PTI 175
Lock Nuts	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Connector Housing	PA66 UL94 V0/V2 GWT 850°C black - grey RAL 7035	PA66 UL94 V0/V2 GWT 850°C black - grey RAL 7035	PA66 UL94 V0/V2 GWT 850°C black - grey RAL 7035	PA66 UL94 V0/V2 GWT 850°C black - grey RAL 7035
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Grommets	TPE	TPE	TPE	TPE
Seals	SEBS	SEBS	SEBS	SEBS
Contact Screw Terminals	Brass nickel plated OR Brass silver plated (THX.384.XXX.AG)	Brass nickel plated OR Brass silver plated (THX.384.XXX.AG)	Brass nickel plated OR Brass silver plated (THX.384.XXX.AG)	Brass nickel plated OR Brass silver plated (THX.384.XXX.AG)
Standard / Piercing Screws	M3 steel zinc plated	M3 steel zinc brass plated	M3 steel zinc plated	M3 steel zinc brass plated
Standards	EN60998-1:2004 EN61984:2001 EN60529:1991+A1:2000 (IP6X - X8, 5 m / 3 h) EN60529:1991 (IPX8, 50 m / 24 h)	EN60998-1:2004 EN61984:2001 EN60529:1991+A1:2000 (IP6X - X8, 5 m / 3 h) EN60529:1991 (IPX8, 50 m / 24 h)	EN60998-1:2004 EN61984:2001 EN60529:1991+A1:2000 (IP6X - X8, 5 m / 3 h) EN60529:1991 (IPX8, 50 m / 24 h)	EN60998-1:2004 EN61984:2001 EN60529:1991+A1:2000 (IP6X - X8, 5 m / 3 h) EN60529:1991 (IPX8, 50 m / 24 h)
Note	Every connector housing type can be equipped with male or female contacts. For reasons pertaining to safety, only female contacts may be used in the live part of the connector.	Every connector housing type can be equipped with male or female contacts. For reasons pertaining to safety, only female contacts may be used in the live part of the connector.	Every connector housing type can be equipped with male or female contacts. For reasons pertaining to safety, only female contacts may be used in the live part of the connector.	Every connector housing type can be equipped with male or female contacts. For reasons pertaining to safety, only female contacts may be used in the live part of the connector.

Article Number	THB.384.B1A	THP.384.B1A	THB.384.M1A	THP.384.M1A
Number Of Contacts	3	3	3	3
Protection Degree	IP66-68	IP66-68	IP54	IP54
Upper Temperature	+125 °C	+125 °C	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C	-40 °C	-40 °C
Rated Voltage	400	400	400	400
Pollution Degree	2	2	2	2
Rated Current	17.5 A	17.5 A	17.5 A	17.5 A
Contact Terminal	Contact screw terminals. For cable section < 1.0 mm²	Piercing clip terminals max 1,5 mm²	Contact screw terminals. For cable section < 1.0 mm²	Piercing clip terminals max 1,5 mm²
Terminals	Screw	Piercing	Screw	Piercing
Cable Section	max 4,0 mm²	0,5 - 1,5 mm²	max 4,0 mm²	0,5 - 1,5 mm²
Min-max Cable Diameter	7,0 - 12,0 mm	7,0 - 12,0 mm	7,0 - 12,0 mm	7,0 - 12,0 mm
T Marking	T85 °C	T85 °C	T85 °C	T85 °C
Protection Degree Details	5 bar (50 m / 24 h)	5 bar (50 m / 24 h)	5 bar (50 m / 24 h)	5 bar (50 m / 24 h)
Impulse Withstand Category	II	II	II	II
Impulse Withstand Voltage	4 kV	4 kV	4 kV	4 kV
Tracking Index	PTI 175	PTI 175	PTI 175	PTI 175
Lock Nuts	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Connector Housing	PA66 UL94 V0/V2 GWT 850°C black - grey RAL 7035	PA66 UL94 V0/V2 GWT 850°C black - grey RAL 7035	PA66 UL94 V0/V2 GWT 850°C black - grey RAL 7035	PA66 UL94 V0/V2 GWT 850°C black - grey RAL 7035
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Grommets	TPE	TPE	TPE	TPE
Seals	SEBS	SEBS	SEBS	SEBS
Contact Screw Terminals	Brass nickel plated OR Brass silver plated (THX.384.XXX.AG)	Brass nickel plated OR Brass silver plated (THX.384.XXX.AG)	Brass nickel plated OR Brass silver plated (THX.384.XXX.AG)	Brass nickel plated OR Brass silver plated (THX.384.XXX.AG)
Standard / Piercing Screws	M3 steel zinc plated	M3 steel zinc brass plated	M3 steel zinc plated	M3 steel zinc brass plated
Standards	EN60998-1:2004 EN61984:2001 EN60529:1991+A1:2000 (IP6X - X8, 5 m / 3 h) EN60529:1991 (IPX8, 50 m / 24 h)	EN60998-1:2004 EN61984:2001 EN60529:1991+A1:2000 (IP6X - X8, 5 m / 3 h) EN60529:1991 (IPX8, 50 m / 24 h)	EN60998-1:2004 EN61984:2001 EN60529:1991+A1:2000 (IP6X - X8, 5 m / 3 h) EN60529:1991 (IPX8, 50 m / 24 h)	EN60998-1:2004 EN61984:2001 EN60529:1991+A1:2000 (IP6X - X8, 5 m / 3 h) EN60529:1991 (IPX8, 50 m / 24 h)
Note	Every connector housing type can be equipped with male or female contacts. For reasons pertaining to safety, only female contacts may be used in the live part of the connector.	Every connector housing type can be equipped with male or female contacts. For reasons pertaining to safety, only female contacts may be used in the live part of the connector.	Every connector housing type can be equipped with male or female contacts. For reasons pertaining to safety, only female contacts may be used in the live part of the connector.	Every connector housing type can be equipped with male or female contacts. For reasons pertaining to safety, only female contacts may be used in the live part of the connector.

Les propriétés diffèrent selon les variantes et sous-variantes

Accessoires

604000500

seal for wall mounting
