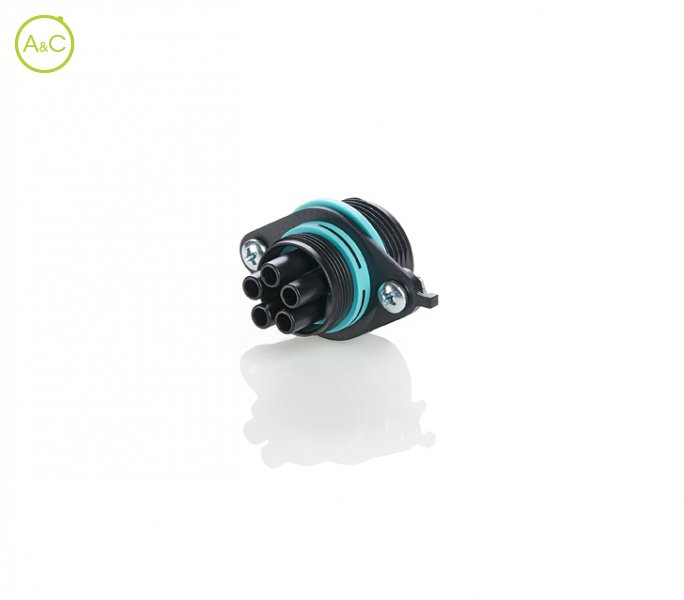

IP68 Panel-mount mini connector

Avez-vous des questions sur ce produit?

Télécharger la fiche produit

Plus d’infos sur cette marque:

Article Number	THB.387.D2A	THP.387.D2A
Number Of Contacts	2	2
Protection Degree	IP68	IP68
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	450	450
Pollution Degree	2	2
Rated Current	17.5 A	17.5 A
Contact Terminal	Contact screw terminals. For cable section < 1.0 mm²	Piercing clip terminals max 1,5 mm²
Terminals	Screw	Piercing
Cable Section	0,5 - 2,5 mm²	0,5 - 1,5 mm²
Min-max Cable Diameter	7,0 - 12,0 mm	7,0 - 12,0 mm
Protection Degree Details	3 bar (30m / 3h)	3 bar (30m / 3h)
Impulse Withstand Category	II	II
Impulse Withstand Voltage	4 kV	4 kV
Tracking Index	PTI 175	PTI 175
Cable Glands	PA66 UL94 V2	PA66 UL94 V2
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Grommets	TPE green	TPE green
Co-moulded Seals	TPE green	TPE green
Contact Screw Terminals	Brass nickel plated	Brass nickel plated
Standard / Piercing Screws	M3 steel zinc plated	M3 steel zinc brass plated
Standards	EN61984:2009	EN61984:2009
Note	Every connector housing type can be equipped with male or female contacts. For reasons pertaining to safety, only female contacts may be used in the live part of the connector.	Every connector housing type can be equipped with male or female contacts. For reasons pertaining to safety, only female contacts may be used in the live part of the connector.

Article Number	THB.387.D3A	THP.387.D3A
Number Of Contacts	3	3
Protection Degree	IP68	IP68
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	450	450
Pollution Degree	2	2
Rated Current	17.5 A	17.5 A
Contact Terminal	Contact screw terminals. For cable section < 1.0 mm²	Piercing clip terminals max 1,5 mm²
Terminals	Screw	Piercing
Cable Section	0,5 - 2,5 mm²	0,5 - 1,5 mm²
Min-max Cable Diameter	7,0 - 12,0 mm	7,0 - 12,0 mm
Protection Degree Details	3 bar (30m / 3h)	3 bar (30m / 3h)
Impulse Withstand Category	II	II
Impulse Withstand Voltage	4 kV	4 kV
Tracking Index	PTI 175	PTI 175
Cable Glands	PA66 UL94 V2	PA66 UL94 V2
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Grommets	TPE green	TPE green
Co-moulded Seals	TPE green	TPE green
Contact Screw Terminals	Brass nickel plated	Brass nickel plated
Standard / Piercing Screws	M3 steel zinc plated	M3 steel zinc brass plated
Standards	EN61984:2009	EN61984:2009
Note	Every connector housing type can be equipped with male or female contacts. For reasons pertaining to safety, only female contacts may be used in the live part of the connector.	Every connector housing type can be equipped with male or female contacts. For reasons pertaining to safety, only female contacts may be used in the live part of the connector.

Article Number	THB.387.D4A	THP.387.D4A
Number Of Contacts	4	4
Protection Degree	IP68	IP68
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	450	450
Pollution Degree	2	2
Rated Current	17.5 A	17.5 A
Contact Terminal	Contact screw terminals. For cable section < 1.0 mm²	Piercing clip terminals max 1,5 mm²
Terminals	Screw	Piercing
Cable Section	0,5 - 2,5 mm²	0,5 - 1,5 mm²
Min-max Cable Diameter	7,0 - 12,0 mm	7,0 - 12,0 mm
Protection Degree Details	3 bar (30m / 3h)	3 bar (30m / 3h)
Impulse Withstand Category	II	II
Impulse Withstand Voltage	4 kV	4 kV
Tracking Index	PTI 175	PTI 175
Cable Glands	PA66 UL94 V2	PA66 UL94 V2
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Grommets	TPE green	TPE green
Co-moulded Seals	TPE green	TPE green
Contact Screw Terminals	Brass nickel plated	Brass nickel plated
Standard / Piercing Screws	M3 steel zinc plated	M3 steel zinc brass plated
Standards	EN61984:2009	EN61984:2009
Note	Every connector housing type can be equipped with male or female contacts. For reasons pertaining to safety, only female contacts may be used in the live part of the connector.	Every connector housing type can be equipped with male or female contacts. For reasons pertaining to safety, only female contacts may be used in the live part of the connector.

Article Number	THB.387.D5A	THP.387.D5A
Number Of Contacts	5	5
Protection Degree	IP68	IP68
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	450	450
Pollution Degree	2	2
Rated Current	17.5 A	17.5 A
Contact Terminal	Contact screw terminals. For cable section < 1.0 mm²	Piercing clip terminals max 1,5 mm²
Terminals	Screw	Piercing
Cable Section	0,5 - 1,5 mm²	0,5 - 1,5 mm²
Min-max Cable Diameter	7,0 - 12,0 mm	7,0 - 12,0 mm
Protection Degree Details	3 bar (30m / 3h)	3 bar (30m / 3h)
Impulse Withstand Category	II	II
Impulse Withstand Voltage	4 kV	4 kV
Tracking Index	PTI 175	PTI 175
Cable Glands	PA66 UL94 V2	PA66 UL94 V2
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Grommets	TPE green	TPE green
Co-moulded Seals	TPE green	TPE green
Contact Screw Terminals	Brass nickel plated	Brass nickel plated
Standard / Piercing Screws	M3 steel zinc plated	M3 steel zinc brass plated
Standards	EN61984:2009	EN61984:2009
Note	Every connector housing type can be equipped with male or female contacts. For reasons pertaining to safety, only female contacts may be used in the live part of the connector.	Every connector housing type can be equipped with male or female contacts. For reasons pertaining to safety, only female contacts may be used in the live part of the connector.

Les propriétés diffèrent selon les variantes et sous-variantes
