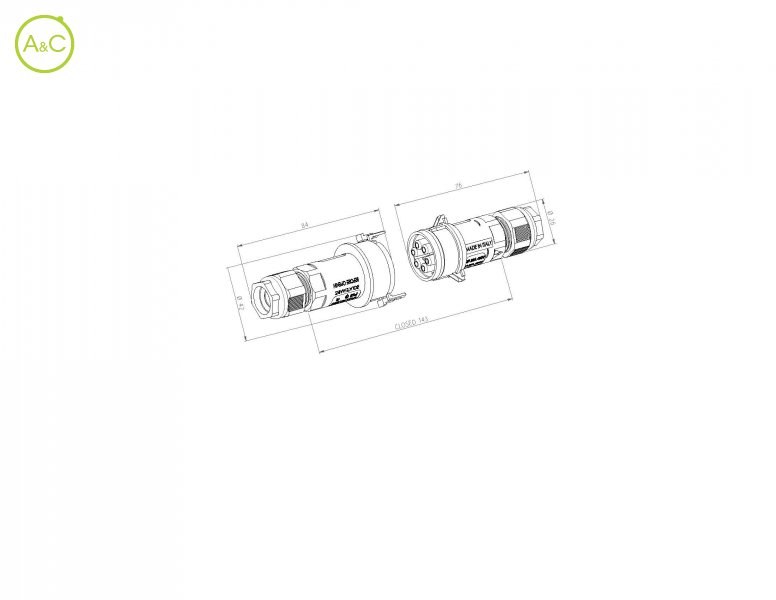

IP65 insert plug connector

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Number Of Poles

  • 2
  • 3
  • 5
  • 6
Article Number THB.404.A2G THP.404.A2G
Number Of Contacts 2 2
Protection Degree IP65 IP65
Upper Temperature +125 °C +125 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 400 400
Pollution Degree 2 2
Rated Current 25 A 25 A
Contact Terminal Contact screw terminals. For cable section < 1.0 mm² Piercing clip terminal max 1,5 mm²
Terminals Screw Piercing
Cable Section max 4,0 mm² 0,5 - 1,5 mm²
Min-max Cable Diameter 7,0 - 14,0 mm 7,0 - 14,0 mm
T Marking T125 °C T125 °C
Impulse Withstand Category II II
Impulse Withstand Voltage 4 kV 4 kV
Tracking Index PTI 175 PTI 175
Lock Nuts PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035 PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Connector Housing PA66 UL94 V0/V2 GWT 850°C black - grey RAL 7035 PA66 UL94 V0/V2 GWT 850°C black - grey RAL 7035
Terminal Block Housing PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035 PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Grommets TPE/silicon TPE/silicon
Seals TPE/silicon TPE/silicon
Contact Screw Terminals Brass nickel plated OR Brass silver plated (THX.404.XXX.AG) Brass nickel plated OR Brass silver plated (THX.404.XXX.AG)
Standard / Piercing Screws M3 steel zinc plated M3 steel zinc brass plated
Standards EN61984:2001 EN61984:2001
Note Every connector housing type can be equipped with male or female contacts. For reasons pertaining to safety, only female contacts may be used in the live part of the connector. Every connector housing type can be equipped with male or female contacts. For reasons pertaining to safety, only female contacts may be used in the live part of the connector.
Les propriétés diffèrent selon les variantes et sous-variantes
