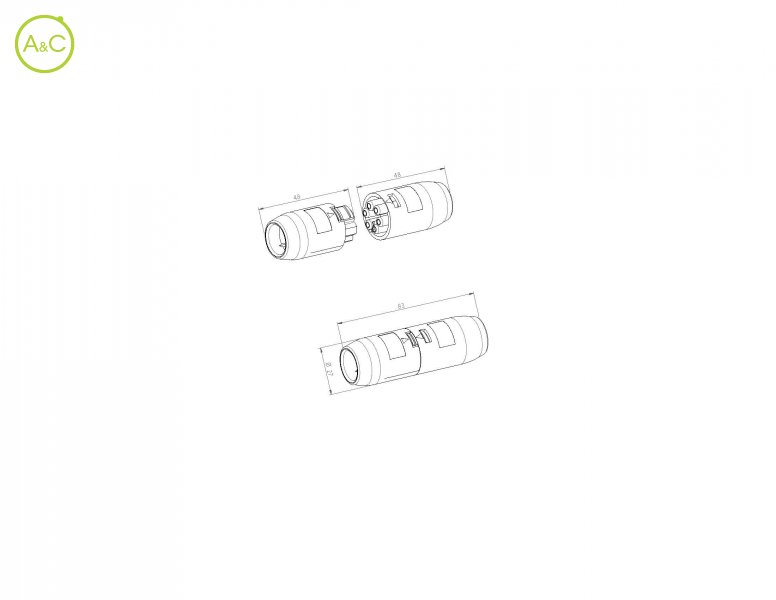

IP20 pin crimp plug connector

THF.388.A2A

THF.388.A2A

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

Number Of Poles

2
3
5
6

Article Number	THF.388.A2A
Number Of Contacts	2
Protection Degree	IP20
Upper Temperature	+125 °C
Lower Temperature	-40 °C
Rated Voltage	400
Pollution Degree	2
Rated Current	10 A
Contact Terminal	For universal cylindric pin ∅ 2 mm (not supplied).
Terminals	Crimp
Min-max Cable Diameter	max 17,0 mm
T Marking	T125 °C
Impulse Withstand Category	II
Impulse Withstand Voltage	4 kV
Tracking Index	PTI 175
Connector Housing	PA66 UL94 V0/V2 GWT 850°C black - grey RAL 7035
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Contact Screw Terminals	Brass nickel plated OR Brass silver plated (THX.388.XXX.AG)
Standards	EN61984:2001

Article Number	THF.388.A3A
Number Of Contacts	3
Protection Degree	IP20
Upper Temperature	+125 °C
Lower Temperature	-40 °C
Rated Voltage	400
Pollution Degree	2
Rated Current	10 A
Contact Terminal	For universal cylindric pin ∅ 2 mm (not supplied).
Terminals	Crimp
Min-max Cable Diameter	max 17,0 mm
T Marking	T125 °C
Impulse Withstand Category	II
Impulse Withstand Voltage	4 kV
Tracking Index	PTI 175
Connector Housing	PA66 UL94 V0/V2 GWT 850°C black - grey RAL 7035
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Contact Screw Terminals	Brass nickel plated OR Brass silver plated (THX.388.XXX.AG)
Standards	EN61984:2001

Article Number	THF.388.A5A
Number Of Contacts	5
Protection Degree	IP20
Upper Temperature	+125 °C
Lower Temperature	-40 °C
Rated Voltage	400
Pollution Degree	2
Rated Current	10 A
Contact Terminal	For universal cylindric pin ∅ 2 mm (not supplied).
Terminals	Crimp
Min-max Cable Diameter	max 17,0 mm
T Marking	T85 °C
Impulse Withstand Category	II
Impulse Withstand Voltage	6 kV
Tracking Index	PTI 175
Connector Housing	PA66 UL94 V0/V2 GWT 850°C black - grey RAL 7035
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Contact Screw Terminals	Brass nickel plated OR Brass silver plated (THX.388.XXX.AG)
Standards	EN61984:2001

Article Number	THF.388.A6A
Number Of Contacts	6
Protection Degree	IP20
Upper Temperature	+125 °C
Lower Temperature	-40 °C
Rated Voltage	400
Pollution Degree	2
Rated Current	10 A
Contact Terminal	For universal cylindric pin ∅ 2 mm (not supplied).
Terminals	Crimp
Min-max Cable Diameter	max 17,0 mm
T Marking	T85 °C
Impulse Withstand Category	II
Impulse Withstand Voltage	6 kV
Tracking Index	PTI 175
Connector Housing	PA66 UL94 V0/V2 GWT 850°C black - grey RAL 7035
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Contact Screw Terminals	Brass nickel plated OR Brass silver plated (THX.388.XXX.AG)
Standards	EN61984:2001

Les propriétés diffèrent selon les variantes et sous-variantes
