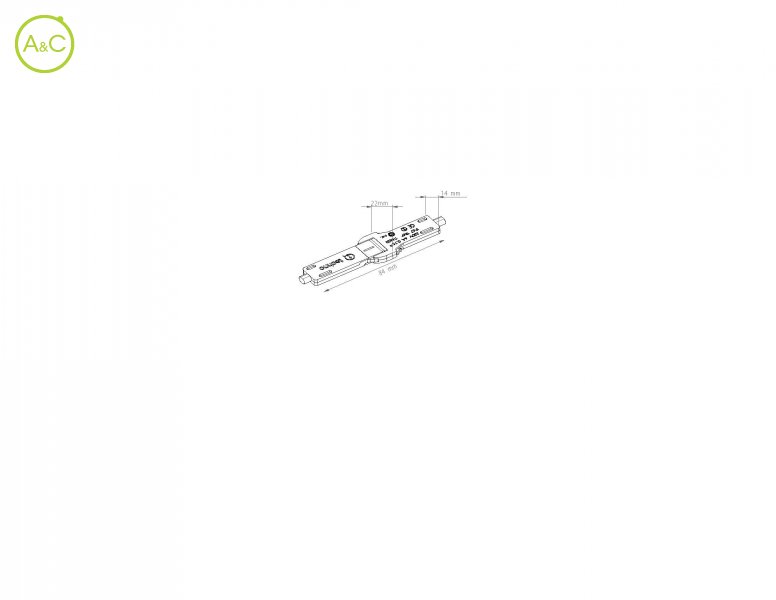

IP67 extra-slim Special connector

Télécharger la fiche produit

Number Of Poles

  • 2
Article Number THH.420.A2A
Number Of Contacts 2
Cable Length 450 mm mm
Protection Degree IP67
Upper Temperature +110 °C
Lower Temperature -20 to +110 °C
Rated Voltage 230
Pollution Degree 2
Rated Current 6 A
Terminals ∅ 1.8 mm crimp
Cable Section 0.75 mm²
Cable Characteristics H03V2V2-F (2 x 0.75 mm²)
T Marking T85 °C
Protection Degree Details (1 m / 30 min)
Impulse Withstand Category II
Impulse Withstand Voltage 2.5 kV
Tracking Index PTI 175
Connector Housing PC FV UL94 V2 GWT 850°C black - transparent
Seals EPDM rubber
Terminals Finish Tin plated brass
Standards EN61984:2001 TEST REPORT EN60529:1991+A1:2000 IP67:1MT-PROOF; 30MIN EN60998-1:2004 HEATING RESISTANCE
Note 8A 230V according to NF France.
Les propriétés diffèrent selon les variantes et sous-variantes
