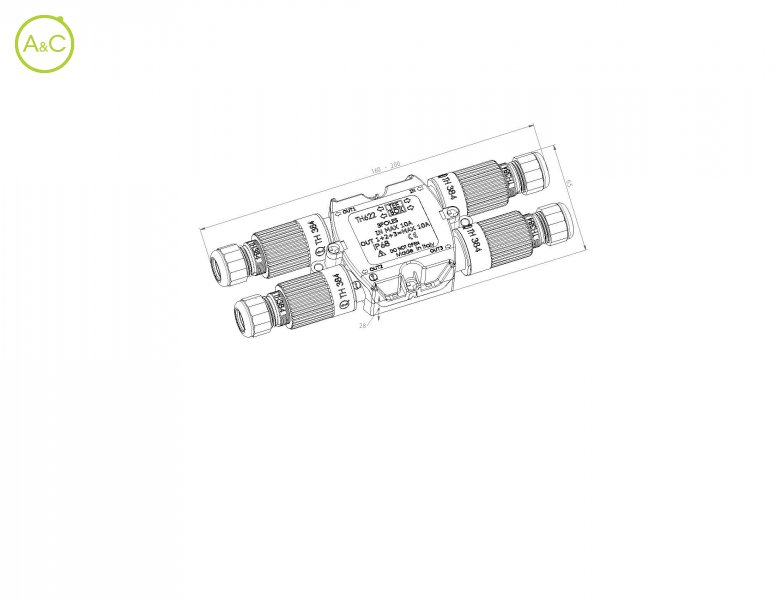

10 A current distrubutor

Avez-vous des questions sur ce produit?

Télécharger la fiche produit

Plus d’infos sur cette marque:

Article Number	THH.622.C2A	THP.622.C2A	THF.622.C2A
Number Of Contacts	2	2	2
Protection Degree	IP54	IP54	IP54
Upper Temperature	+125 °C	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Rated Voltage	400	400	400
Pollution Degree	2	2	2
Rated Current	10 A	10 A	10 A
Plug - Socket	3 output: PLUG THB.384 1 input: SOCKET THB.384	3 output: PLUG THB.384 1 input: SOCKET THB.384	3 output: PLUG THB.384 1 input: SOCKET THB.384
Contact Terminal	Contact screw terminals for cable section < 1,0 mm²	Piercing clip terminal max 1,5 mm²	For universal cylindric pin ∅ 2 mm (not supplied).
Terminals	Screw	Piercing	Crimp
Min-max Cable Diameter	7,0 - 12,0 mm	7,0 - 12,0 mm	7,0 - 12,0 mm
Cable Entries/exits	4 ways	4 ways	4 ways
T Marking	T85 °C	T85 °C	T85 °C
Impulse Withstand Category	II	II	II
Impulse Withstand Voltage	4 kV	4 kV	4 kV
Tracking Index	PTI 175	PTI 175	PTI 175
Distributor And Connector Housing	PA66 UL94 V0/V2 GWT 850°C black - grey RAL7035	PA66 UL94 V0/V2 GWT 850°C black - grey RAL7035	PA66 UL94 V0/V2 GWT 850°C black - grey RAL7035
Grommets	TPE/SEBS	TPE/SEBS	TPE/SEBS
Seals	TPE/SEBS	TPE/SEBS	TPE/SEBS
Fixing Screws Of Lid	M3 x 12,0 mm inox stainless steel self-locking screw	M3 x 12,0 mm inox stainless steel self-locking screw	M3 x 12,0 mm inox stainless steel self-locking screw
Standards	EN61984:2001 EN60529:1991+A1:2000 TEST REPORT EN60998-1:2004 HEATING RESISTANCE	EN61984:2001 EN60529:1991+A1:2000 TEST REPORT EN60998-1:2004 HEATING RESISTANCE	EN61984:2001 EN60529:1991+A1:2000 TEST REPORT EN60998-1:2004 HEATING RESISTANCE

Article Number	THH.622.C3A	THP.622.C3A	THF.622.C3A
Number Of Contacts	3	3	3
Protection Degree	IP54	IP54	IP54
Upper Temperature	+125 °C	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Rated Voltage	400	400	400
Pollution Degree	2	2	2
Rated Current	10 A	10 A	10 A
Plug - Socket	3 output: PLUG THB.384 1 input: SOCKET THB.384	3 output: PLUG THB.384 1 input: SOCKET THB.384	3 output: PLUG THB.384 1 input: SOCKET THB.384
Contact Terminal	Contact screw terminals for cable section < 1,0 mm²	Piercing clip terminal max 1,5 mm²	For universal cylindric pin ∅ 2 mm (not supplied).
Terminals	Screw	Piercing	Crimp
Min-max Cable Diameter	7,0 - 12,0 mm	7,0 - 12,0 mm	7,0 - 12,0 mm
Cable Entries/exits	4 ways	4 ways	4 ways
T Marking	T85 °C	T85 °C	T85 °C
Impulse Withstand Category	II	II	II
Impulse Withstand Voltage	4 kV	4 kV	4 kV
Tracking Index	PTI 175	PTI 175	PTI 175
Distributor And Connector Housing	PA66 UL94 V0/V2 GWT 850°C black - grey RAL7035	PA66 UL94 V0/V2 GWT 850°C black - grey RAL7035	PA66 UL94 V0/V2 GWT 850°C black - grey RAL7035
Grommets	TPE/SEBS	TPE/SEBS	TPE/SEBS
Seals	TPE/SEBS	TPE/SEBS	TPE/SEBS
Fixing Screws Of Lid	M3 x 12,0 mm inox stainless steel self-locking screw	M3 x 12,0 mm inox stainless steel self-locking screw	M3 x 12,0 mm inox stainless steel self-locking screw
Standards	EN61984:2001 EN60529:1991+A1:2000 TEST REPORT EN60998-1:2004 HEATING RESISTANCE	EN61984:2001 EN60529:1991+A1:2000 TEST REPORT EN60998-1:2004 HEATING RESISTANCE	EN61984:2001 EN60529:1991+A1:2000 TEST REPORT EN60998-1:2004 HEATING RESISTANCE

Article Number	THF.622.C4A	THP.622.C4A
Number Of Contacts	4	4
Protection Degree	IP54	IP54
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	400	400
Pollution Degree	2	2
Rated Current	10 A	10 A
Plug - Socket	3 output: PLUG THB.384 1 input: SOCKET THB.384	3 output: PLUG THB.384 1 input: SOCKET THB.384
Contact Terminal	For universal cylindric pin ∅ 2 mm (not supplied).	Piercing clip terminal max 1,5 mm²
Terminals	Crimp	Piercing
Min-max Cable Diameter	7,0 - 12,0 mm	7,0 - 12,0 mm
Cable Entries/exits	4 ways	4 ways
T Marking	T85 °C	T85 °C
Impulse Withstand Category	II	II
Impulse Withstand Voltage	4 kV	4 kV
Tracking Index	PTI 175	PTI 175
Distributor And Connector Housing	PA66 UL94 V0/V2 GWT 850°C black - grey RAL7035	PA66 UL94 V0/V2 GWT 850°C black - grey RAL7035
Grommets	TPE/SEBS	TPE/SEBS
Seals	TPE/SEBS	TPE/SEBS
Fixing Screws Of Lid	M3 x 12,0 mm inox stainless steel self-locking screw	M3 x 12,0 mm inox stainless steel self-locking screw
Standards	EN61984:2001 EN60529:1991+A1:2000 TEST REPORT EN60998-1:2004 HEATING RESISTANCE	EN61984:2001 EN60529:1991+A1:2000 TEST REPORT EN60998-1:2004 HEATING RESISTANCE

Les propriétés diffèrent selon les variantes et sous-variantes
