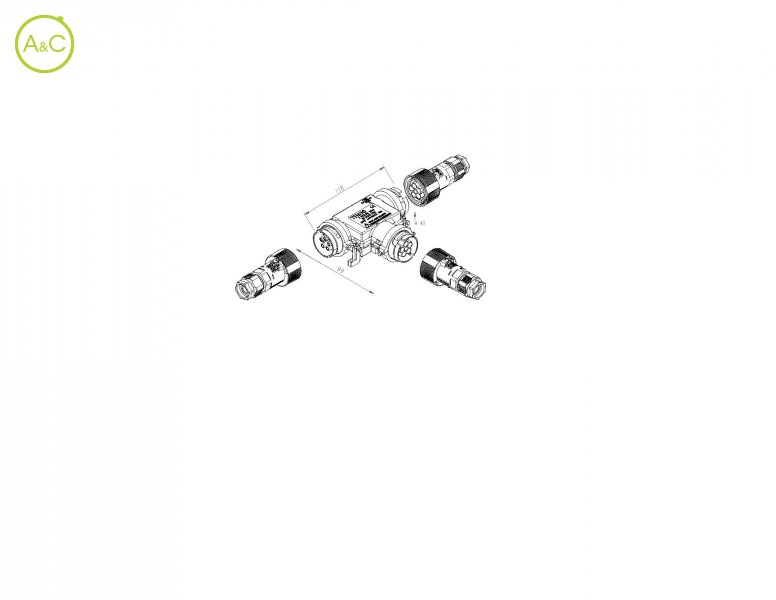

10 A current distributor

  • IP65

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Number Of Poles

  • 2
  • 3
  • 5
  • 6
Article Number THH.630.B2A THP.630.B2A THF.630.B2A
Number Of Contacts 2 2 2
Protection Degree IP65 IP65 IP65
Upper Temperature +125 °C +125 °C +125 °C
Lower Temperature -40 °C -40 °C -40 °C
Rated Voltage 400 400 400
Pollution Degree 2 2 2
Rated Current 10 A 10 A 10 A
Plug - Socket 2 output: PLUG THB.405 1 input: SOCKET THB.405 2 output: PLUG THB.405 1 input: SOCKET THB.405 2 output: PLUG THB.405 1 input: SOCKET THB.405
Contact Terminal Contact screw terminals for cable section < 1,0 mm² Piercing clip terminal max 1,5 mm² For universal cylindric pin ∅ 2 mm (not supplied).
Terminals Screw Piercing Crimp
Min-max Cable Diameter 7,0 - 14,0 mm 7,0 - 14,0 mm 7,0 - 14,0 mm
Cable Entries/exits 3 ways 3 ways 3 ways
T Marking T85 °C T85 °C T85 °C
Impulse Withstand Category II II II
Impulse Withstand Voltage 4 kV 4 kV 4 kV
Tracking Index PTI 175 PTI 175 PTI 175
Distributor And Connector Housing PA66 UL94 V0/V2 GWT 850°C black - grey RAL7035 PA66 UL94 V0/V2 GWT 850°C black - grey RAL7035 PA66 UL94 V0/V2 GWT 850°C black - grey RAL7035
Grommets TPE/SEBS TPE/SEBS TPE/SEBS
Seals TPE/SEBS TPE/SEBS TPE/SEBS
Fixing Screws Of Lid M3 x 12,0 mm inox stainless steel self-locking screw M3 x 12,0 mm inox stainless steel self-locking screw M3 x 12,0 mm inox stainless steel self-locking screw
Standards EN60998-1:2004 HEATING RESISTANCE EN61984:2001 EN60529:1991+A1:2000 EN60998-1:2004 HEATING RESISTANCE EN61984:2001 EN60529:1991+A1:2000 EN60998-1:2004 HEATING RESISTANCE EN61984:2001 EN60529:1991+A1:2000
Les propriétés diffèrent selon les variantes et sous-variantes
