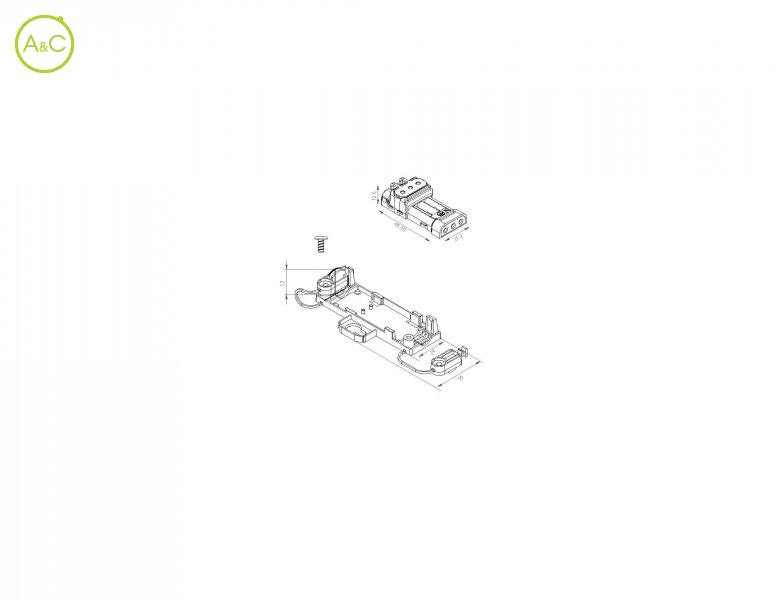

IP54 piercing clip terminal block

Télécharger la fiche produit

Number Of Poles

  • 2
  • 3
Article Number THP.112.A2A
Number Of Contacts 2
Protection Degree IP54
Upper Temperature +125 °C
Lower Temperature -40 °C
Rated Voltage 450
Pollution Degree 2
Rated Current 17.5 A
Contact Terminal Pin - piercing clip terminals / Piercing crimp terminals
Terminals Piercing / crimp
Cable Section 0,5 -1,5 mm²
T Marking T125 °C
Impulse Withstand Category III
Impulse Withstand Voltage 6 kV
Tracking Index PTI 250
Terminal Block Housing PA66 GF UL94 V0 GWT 960°C black
Grommets TPE
Contact Screw Terminals Brass nickel plated
Standard / Piercing Screws M3 steel zinc brass plated
Standards EN61984:2001
Les propriétés diffèrent selon les variantes et sous-variantes
Accessoires
6000287CA
supporting frame with slot max ∅ 8.5 mm
6000286CA
supporting frame with snap-in max ∅ 8.5 mm
600028900
Grommets with closure cap
600029000
Grommets
600032100
Grommets with closure cap
600032200
Grommets
