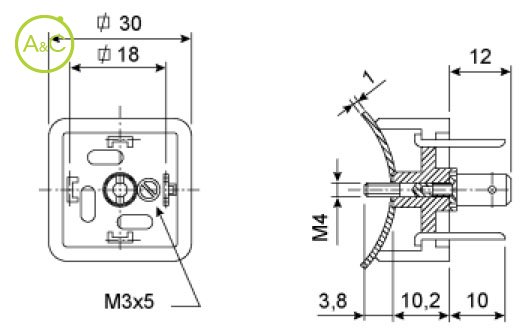

Style A square receptacle connector
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
Shield
![Shield](https://www.ac-solutions.be/themes/default/images/arrow.png)
Number Of Poles
- 2+G
- 3+G
Article Number | VP30 02A0S | VP45 02A0S | VP60 02A0S |
Number Of Contacts | 2+G | 2+G | 2+G |
Protection Degree | IP65 | IP65 | IP65 |
Upper Temperature | +125 °C | +125 °C | +125 °C |
Lower Temperature | -40 °C | -40 °C | -40 °C |
Housing Material | PA66 30%GF | PA66 30%GF | PA66 30%GF |
Housing Oil Resistance | Occasional contact | Occasional contact | Occasional contact |
Contact Material | Nickel plated CuZn | Nickel plated CuZn | Nickel plated CuZn |
Max. Wire Section | 1 mm² | 1 mm² | 1 mm² |
Voltage Vdc | 1 to 250 | 1 to 250 | 1 to 250 |
Voltage Vac | 1 to 250 | 1 to 250 | 1 to 250 |
Max. Currrent | 10 A @40°C | 10 A @40°C | 10 A @40°C |
Fitting Diameter | 28 to 32 mm | 43 to 47 mm | 63 to 67 mm |
Included Accessories | 1 central screw 1 screw M3x5 1 gasket | 1 central screw 1 screw M3x5 1 gasket | 1 central screw 1 screw M3x5 1 gasket |
Les propriétés diffèrent selon les variantes et sous-variantes
