Retainer 2 to 16 contacts

ZL CONNECTOR

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

JST

Number Of Poles

2 and 4
6
8
12
16

Article Number	ZLS-02V
Number Of Contacts	2 and 4
Upper Temperature	+90 °C
Lower Temperature	-25 °C
General Description	5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors
Pitch / Style	5.00 mm
Rated Current (ac/dc)	10 A
Rated Voltage (ac/dc)	300 V
Remark*	Secure locking device

Article Number	ZLS-03V
Number Of Contacts	6
Upper Temperature	+90 °C
Lower Temperature	-25 °C
General Description	5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors
Pitch / Style	5.00 mm
Rated Current (ac/dc)	10 A
Rated Voltage (ac/dc)	300 V
Remark*	Secure locking device

Article Number	ZLS-08V
Number Of Contacts	8
Upper Temperature	+90 °C
Lower Temperature	-25 °C
General Description	5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors
Pitch / Style	5.00 mm
Rated Current (ac/dc)	10 A
Rated Voltage (ac/dc)	300 V
Remark*	Secure locking device

Article Number	ZLS-12V
Number Of Contacts	12
Upper Temperature	+90 °C
Lower Temperature	-25 °C
General Description	5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors
Pitch / Style	5.00 mm
Rated Current (ac/dc)	10 A
Rated Voltage (ac/dc)	300 V
Remark*	Secure locking device

Article Number	ZLS-16V
Number Of Contacts	16
Upper Temperature	+90 °C
Lower Temperature	-25 °C
General Description	5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors
Pitch / Style	5.00 mm
Rated Current (ac/dc)	10 A
Rated Voltage (ac/dc)	300 V
Remark*	Secure locking device

Les propriétés diffèrent selon les variantes et sous-variantes

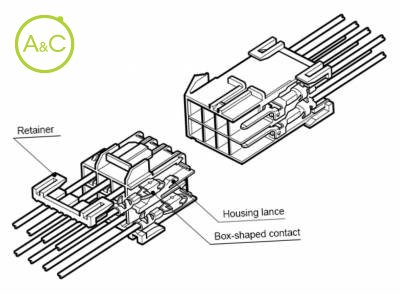

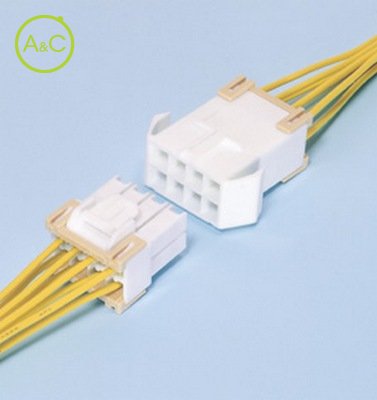

ZL connectors are reliable, smoothly mating wire-to-wire connectors. Housing lances The lances on the resilient housing are not affected by external force. They allow the contact to be easily inserted and securely locked into the housing, and require only a light insertion force. Retainer The retainer ensures high reliability by preventing non-insertion or accidental release of the contact. Installed after the contacts are inserted, it locks and secures the contacts at the lance sections. Box-shaped contacts Our box-shaped contacts serve as socket contacts in a wide variety of applications from low-voltage, low-current signal circuits to power supply circuits. Mountable on a variety of panels Due to our unique panel installation locking mechanisms, the housing can be easily installed on panels of various thicknesses without using tools. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
