Number Of Poles
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
Article Number | 02DB-6S |
Number Of Contacts | 2 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2.5mm Pitch Board-in IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.50 mm |
Rated Current (ac/dc) | 2 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Article Number | 03DB-6S |
Number Of Contacts | 3 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2.5mm Pitch Board-in IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.50 mm |
Rated Current (ac/dc) | 2 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Article Number | 04DB-6S |
Number Of Contacts | 4 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2.5mm Pitch Board-in IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.50 mm |
Rated Current (ac/dc) | 2 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Article Number | 05DB-6S |
Number Of Contacts | 5 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2.5mm Pitch Board-in IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.50 mm |
Rated Current (ac/dc) | 2 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Article Number | 06DB-6S |
Number Of Contacts | 6 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2.5mm Pitch Board-in IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.50 mm |
Rated Current (ac/dc) | 2 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Article Number | 07DB-6S |
Number Of Contacts | 7 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2.5mm Pitch Board-in IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.50 mm |
Rated Current (ac/dc) | 2 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Article Number | 08DB-6S |
Number Of Contacts | 8 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2.5mm Pitch Board-in IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.50 mm |
Rated Current (ac/dc) | 2 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Article Number | 09DB-6S |
Number Of Contacts | 9 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2.5mm Pitch Board-in IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.50 mm |
Rated Current (ac/dc) | 2 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Article Number | 10DB-6S |
Number Of Contacts | 10 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2.5mm Pitch Board-in IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.50 mm |
Rated Current (ac/dc) | 2 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Article Number | 11DB-6S |
Number Of Contacts | 11 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2.5mm Pitch Board-in IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.50 mm |
Rated Current (ac/dc) | 2 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Article Number | 12DB-6S |
Number Of Contacts | 12 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2.5mm Pitch Board-in IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.50 mm |
Rated Current (ac/dc) | 2 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Article Number | 13DB-6S |
Number Of Contacts | 13 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2.5mm Pitch Board-in IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.50 mm |
Rated Current (ac/dc) | 2 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Eigenschappen verschillen tussen varianten en subvarianten

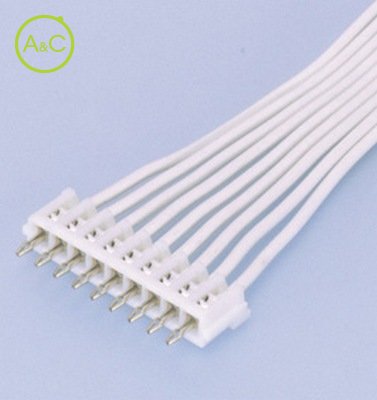

This is a 2.5mm (.098") pitch insulation displacement connector that is soldered directly onto printed circuit boards, with a mounting height of 7.1mm (.280") and with a width of 4.1mm (.161").
The DB connectors can be used by themselves or in combination with the NR or HR connectors.
Compact and low profile
This is a low profile connector with a mounting height 7.1mm (.280") and a width of 4.1mm (.161").
Twin U-slot insulation displacement section
The insulation displacement section connected to the wire consists of two tin-plated slots (twin U-slot) for superb reliability.
Locking solder tail

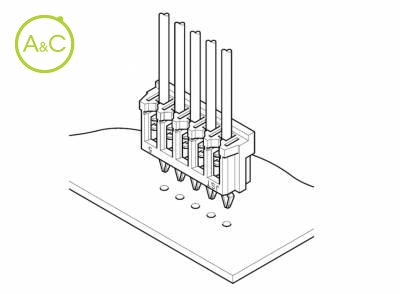

The contact's compliant solder tail has two locking positions, both of which ensure stable connection once inserted into a printed circuit board. This makes insertion into printed circuit boards easy and reliable.
Strain relief
The strain relief feature prevents stress due to vibration, impact or bending from effecting the insulation displacement connection. This is accomplished by holding the outside of the wire with the insulation gripping device on the housing. To ensure circuit integrity against vibration and undue tension, ample clearance is provided between the insulation displacement connection and the strain relief.
Interchangeability
The DB connector has the same board layout and hole size as crimp style SBN and SCN connectors.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
