Number Of Poles
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
Article Number | 02DR-N-E8E-P |
Number Of Contacts | 2 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2mm Pitch Disconnectable IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.00 mm |
Rated Current (ac/dc) | 1.0 A |
Rated Voltage (ac/dc) | 100 V |
Pcb Mount Style | Through-hole Technology (THT) |
Eigenschappen verschillen tussen varianten en subvarianten

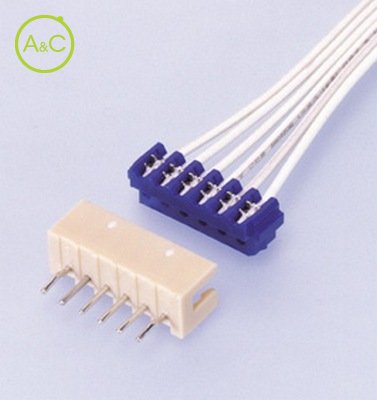

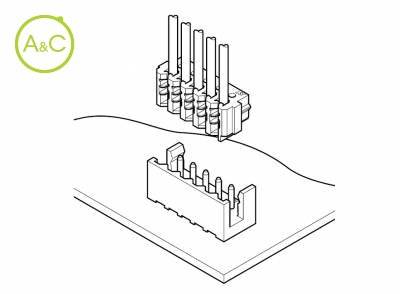

Measuring 2.0mm (.079") in pitch, only 5.0mm (.197") in mounting height, and 4.8mm (.189") in thickness, the DR connector is a compact insulation displacement connector developed to meet the needs for miniaturization of electronic equipment, including VCRs, cameras and car stereo systems.
Compact
This connector measures 2.0mm (.079") in pitch, 5.0mm (.197") in mounting height, and 4.8mm (.189") in thickness.
Twin U-slot insulation displacement section
The insulation displacement section connected to each wire consists of two tin-plated slots (twin U-slots), which ensures reliable connection.
Folded beam double-leaf contact construction
As contact become smaller, their spring strength is reduced. To solve this problem, a folded beam construction is employed to increase contact spring strength.
Strain relief
A strain relief secures the wires insulation to protect the insulation displacement connection against vibration, impact and other external forces. A triangular projection on the shrouded header functions to prevent connector distortion during connection and diSConnection, to reinforce the strain relief and to prevent the conductor of the insulation displacement section from being exposed.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
