Receptacle AWG#28 Green

KRD CONNECTOR

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

JST

Number Of Poles

Article Number	02KR-D8M-P
Number Of Contacts	2
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT) Through-hole Technology (THT)

Article Number	03KR-D8M-P
Number Of Contacts	3
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT) Through-hole Technology (THT)

Article Number	04KR-D8M-P
Number Of Contacts	4
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT) Through-hole Technology (THT)

Article Number	05KR-D8M-P
Number Of Contacts	5
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT) Through-hole Technology (THT)

Article Number	06KR-D8M-P
Number Of Contacts	6
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT) Through-hole Technology (THT)

Article Number	07KR-D8M-P
Number Of Contacts	7
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT) Through-hole Technology (THT)

Article Number	08KR-D8M-P
Number Of Contacts	8
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT) Through-hole Technology (THT)

Article Number	09KR-D8M-P
Number Of Contacts	9
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT) Through-hole Technology (THT)

Article Number	10KR-D8M-P
Number Of Contacts	10
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT) Through-hole Technology (THT)

Article Number	11KR-D8M-P
Number Of Contacts	11
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT) Through-hole Technology (THT)

Article Number	12KR-D8M-P
Number Of Contacts	12
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT) Through-hole Technology (THT)

Article Number	13KR-D8M-P
Number Of Contacts	13
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT) Through-hole Technology (THT)

Article Number	14KR-D8M-P
Number Of Contacts	14
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT) Through-hole Technology (THT)

Article Number	15KR-D8M-P
Number Of Contacts	15
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT) Through-hole Technology (THT)

Article Number	16KR-D8M-P
Number Of Contacts	16
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT) Through-hole Technology (THT)

Eigenschappen verschillen tussen varianten en subvarianten

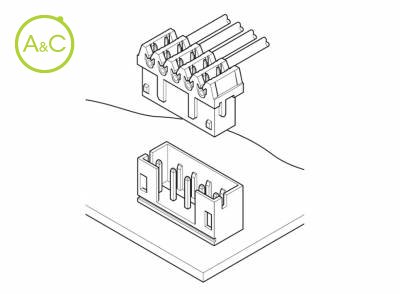

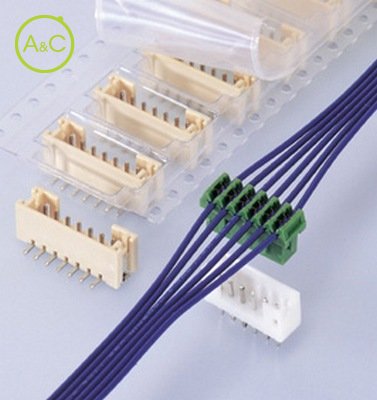

This 2.0mm (.079") pitch insulation displacement connector is another version of the NRD connector for printed circuit boards. The KRD connector allows daisy chaining and is very useful in simplifying connection systems in electronic equipment. Daisy chain connection The connection shown in the figure is commonly called "daisy chain connections" or "through connections". With these simple connections, many signals can be bussed to many different printed circuit boards. The KRD connector is constructed to allow such daisy chain connectors. Twin slot insulation displacement section The insulation displacement section connected to the wire consists of twin tin-plated slots for superb reliability. Distortion resistant construction The header is shrouded and thus protects the receptacle from damage that could be caused by mating the connectors at an angle or otherwise mismating the connectors. Interchangability The shrouded header is interchangeable with the PH crimp style connectors and or KR and CR insulation displacement connectors. Low profile design - a mere 9.0mm (.354") high from the PC board surface Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
